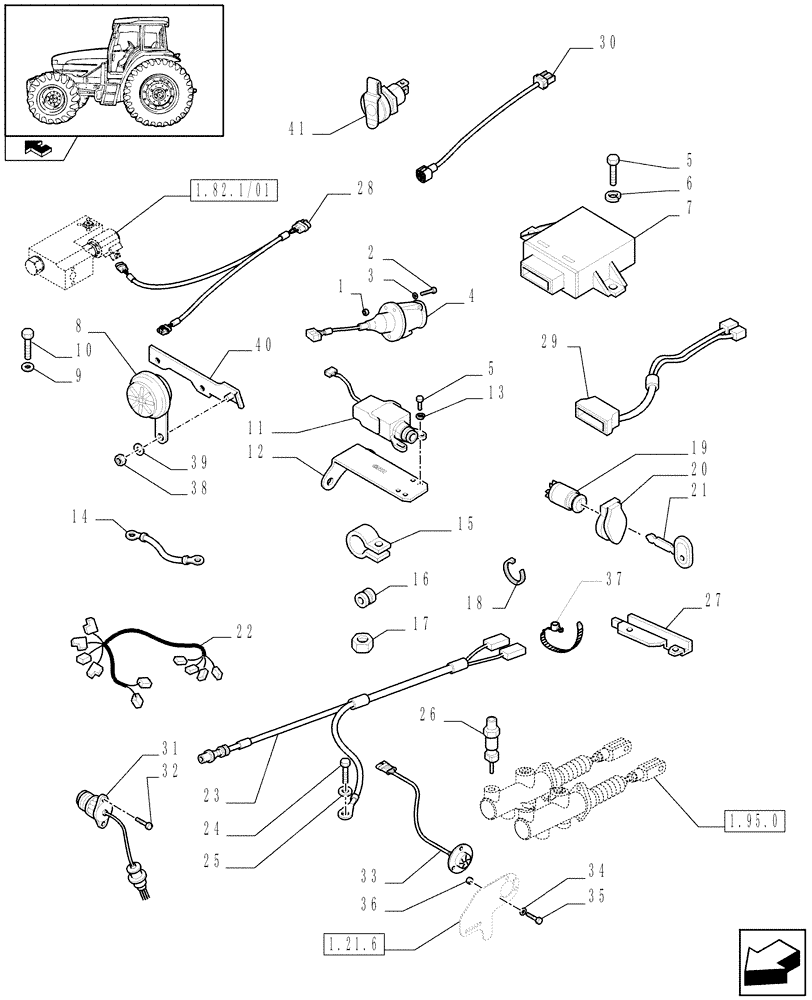

Запчасти Case IH FARMALL 85U (1.75.4[05]) - ELECTRICAL EQUIPMENT (06) - ELECTRICAL SYSTEMS

1

15896414

NUT,M5, Cl 8

3шт.

2

13274911

SCREW,Cross Pan Hd, M5 x 35mm

M5 x 35

3шт.

3

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

4

5198911

WIRE HARNESS

1шт.

5

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

3шт.

6

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

W/CAB

1шт.

7

87577636

FLASHER UNIT

Turn indicator, W/CAB

1шт.

8

47132132

HORN

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

10

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

11

87302930

SWITCH

1шт.

12

5182316

BRACKET

1шт.

13

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

14

5188352

GROUND STRAP

Ground

1шт.

15

10441790

CLAMP,20mm, Coat, 7mm Bolt Hole, P Type

L/CAB

4шт.

16

10399180

RING,12mm ID x 24mm OD x 11mm Thk

L/CAB

2шт.

17

15896211

NUT,M6, Cl 8

L/CAB

2шт.

18

5143428

CABLE TIE,116mm L

CABLE STRAP L/CAB

16шт.

18

14560287

CABLE TIE,207.00mm L

COLLAR L/Cab

4шт.

19

87556869

IGNITION SWITCH

50A

1шт.

20

87592039

COVER

1шт.

21

87312356

IGNITION KEY

2шт.

22

5175064

WIRE HARNESS

W/CAB

1шт.

23

5184236

WIRE HARNESS

25A Socket

1шт.

24

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

L/CAB

1шт.

25

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

L/CAB

1шт.

26

5190018

PRESSURE SWITCH

2шт.

27

5173057

GUARD

VAR.330760, L/CAB

1шт.

28

87643559

ELECTRIC CABLE

VAR. 330632-331632-332632

1шт.

29

87344367

CABLE

1шт.

W/VAR.330335-331335, Pneumatic Trailer Brake

1шт.

30

87354709

ELECTRIC CABLE

1шт.

W/VAR.330745

1шт.

31

87345189

WIRE HARNESS

ELECTRIC CABLE

1шт.

W/VAR.330745

1шт.

32

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

4 x 16

2шт.

W/VAR.330745

1шт.

33

84206945

CABLE

, Start Serial: D6463

1шт.

Front Loader, VAR.330489-330490

1шт.

34

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Start Serial: D6463

3шт.

Front Loader, VAR.330489-330490

1шт.

35

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

, Start Serial: D6463

3шт.

Front Loader, VAR.330489-330490

1шт.

36

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

, Start Serial: D6463

3шт.

Front Loader, VAR.330489-330490

1шт.

37

85805383

CABLE TIE

CABLE STRAP

11шт.

38

14059314

FLANGE NUT,Hex, M8 x 1, Cl 8

M8

1шт.

39

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

40

84339480

BRACKET

1шт.

41

84191453

SOCKET,12/24V, 20A

, Start Serial: D6814

1шт.
