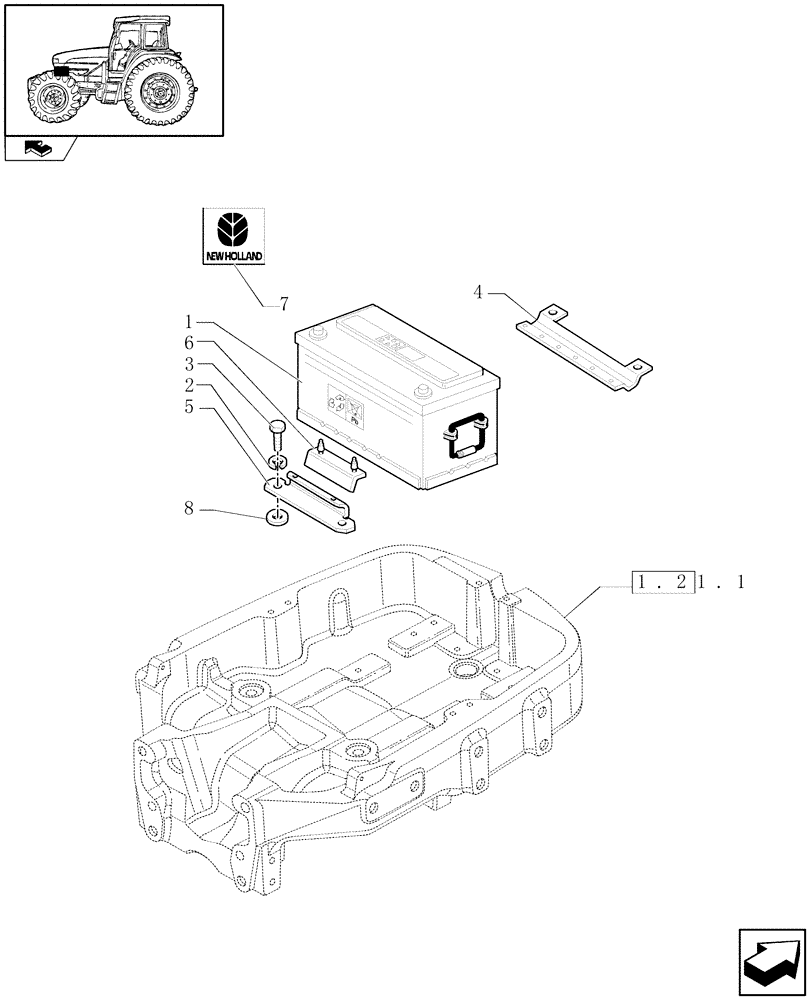

Запчасти Case IH FARMALL 85U (1.74.1) - BATTERY AND BATTERY MOUNTING (VAR.330740-330741) (06) - ELECTRICAL SYSTEMS

1

87327955

WET BATTERY

12V-100AH-800A

1шт.

VAR.330740

1шт.

1

5199958

WET BATTERY

132AH/960CCA

1шт.

VAR.330741

1шт.

2

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

3

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

47123124

MOUNTING PLATE

Rear

1шт.

5

5168057

MOUNTING PLATE

1шт.

6

5115754

PAD

Battery

4шт.

7

82031728

DECAL

Branding

1шт.

8

5174167

SPACER

4шт.
