(1.68.5/03) - FRONT AXLE W/LIMITED SLIP DIFF - BRAKE PIPES (VAR.330323)

Запчасти Case IH FARMALL 85U (1.68.5/03) - FRONT AXLE W/LIMITED SLIP DIFF - BRAKE PIPES (VAR.330323) (05) - REAR AXLE

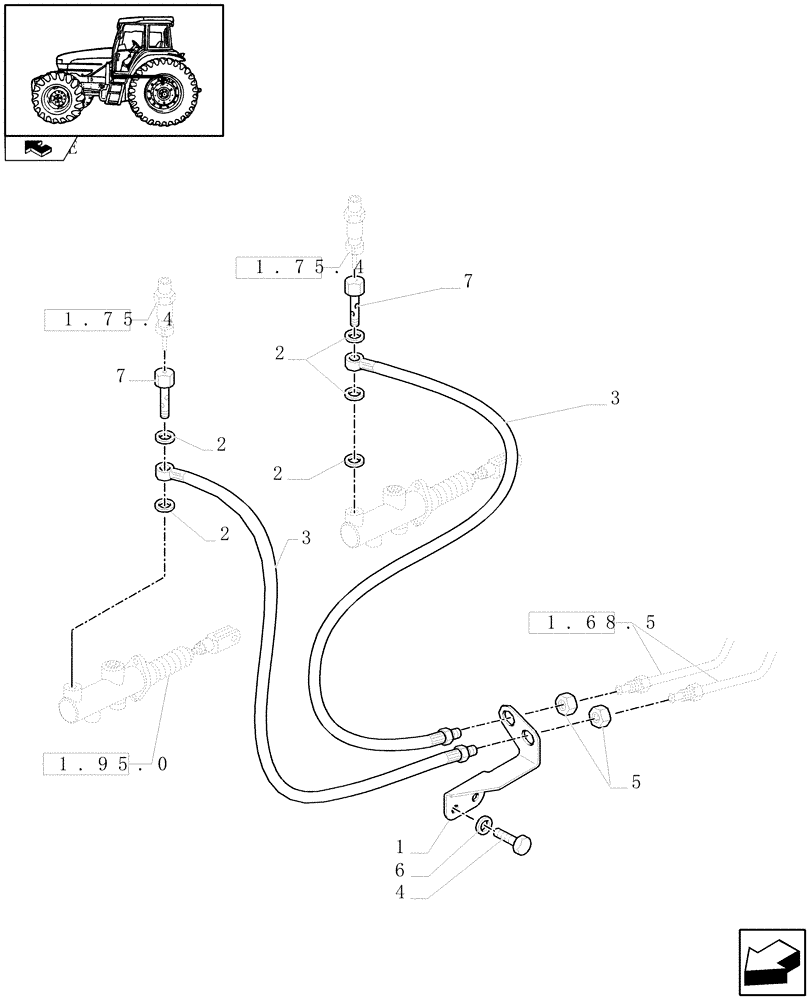

Схема запчастей Case IH FARMALL 85U - (1.68.5/03) - FRONT AXLE W/LIMITED SLIP DIFF - BRAKE PIPES (VAR.330323) (05) - REAR AXLE
7
4
3
2
3
5
home
1.68.5
1.75.4
1.75.4
1.95.0
2
6
1
7
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132546

BRACKET

1шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

3

47136663

HOSE,4.75mm ID x 345mm L

2шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

5155704

BANJO BOLT

2шт.
