(1.68.5/02) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BRACKETS, PIPES (VAR.330415)

Запчасти Case IH FARMALL 85U (1.68.5/02) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BRACKETS, PIPES (VAR.330415) (05) - REAR AXLE

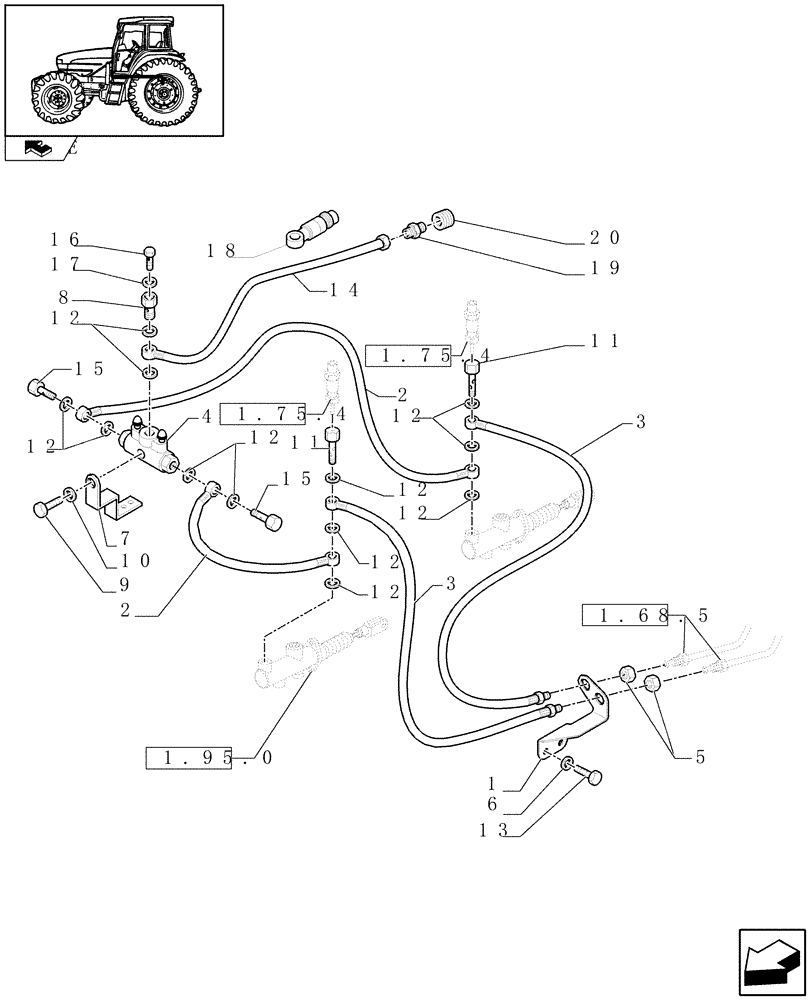

Схема запчастей Case IH FARMALL 85U - (1.68.5/02) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BRACKETS, PIPES (VAR.330415) (05) - REAR AXLE
12
19
2
7
11
1
12
home
3
1.75.4
14
1.95.0
1.68.5
1.75.4
2
3
18
15
17
4
9
10
12
16
12
12
13
12
8
12
20
6
15
12
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132546

BRACKET

1шт.

2

47132429

FLEXIBLE HOSE

2шт.

3

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

3

47136663

HOSE,4.75mm ID x 345mm L

2шт.

4

5143506

MASTER CYLINDER

Synchronizing

1шт.

5

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

47132430

SUPPORT

1шт.

8

5185683

HYD CONNECTOR

1шт.

9

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

10

10516674

LOCK WASHER,M8

1шт.

11

47132432

HYD CONNECTOR

2шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER 12 x 18 x 1.5

13шт.

13

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

14

5173912

HOSE,4.75mm ID x 1450mm L

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

2шт.

16

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

1шт.

17

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

18

82030175

BANJO FITTING,M8 x 1 x 53mm

Schrader

1шт.

19

47131899

HYD CONNECTOR

1шт.

20

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

1шт.
