(1.32.0[01]) - CASINGS, COVERS AND SUPPORTS

Запчасти Case IH FARMALL 85U (1.32.0[01]) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION

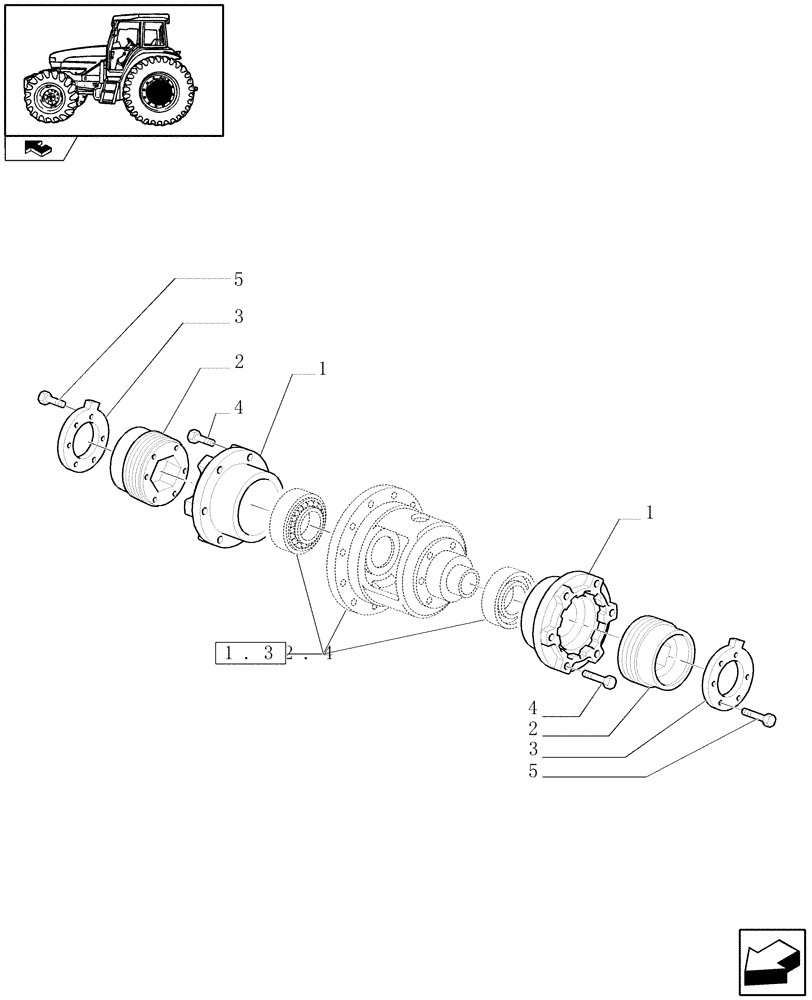

Схема запчастей Case IH FARMALL 85U - (1.32.0[01]) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION
1
5
home
1
2
3
2
1.32.4
4
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181163

SUPPORT

2шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

2шт.

3

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

2шт.

4

14233931

LOCK BOLT,Self Lkg, M10 x 1.25 x 45mm

M10 x 45

12шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.
