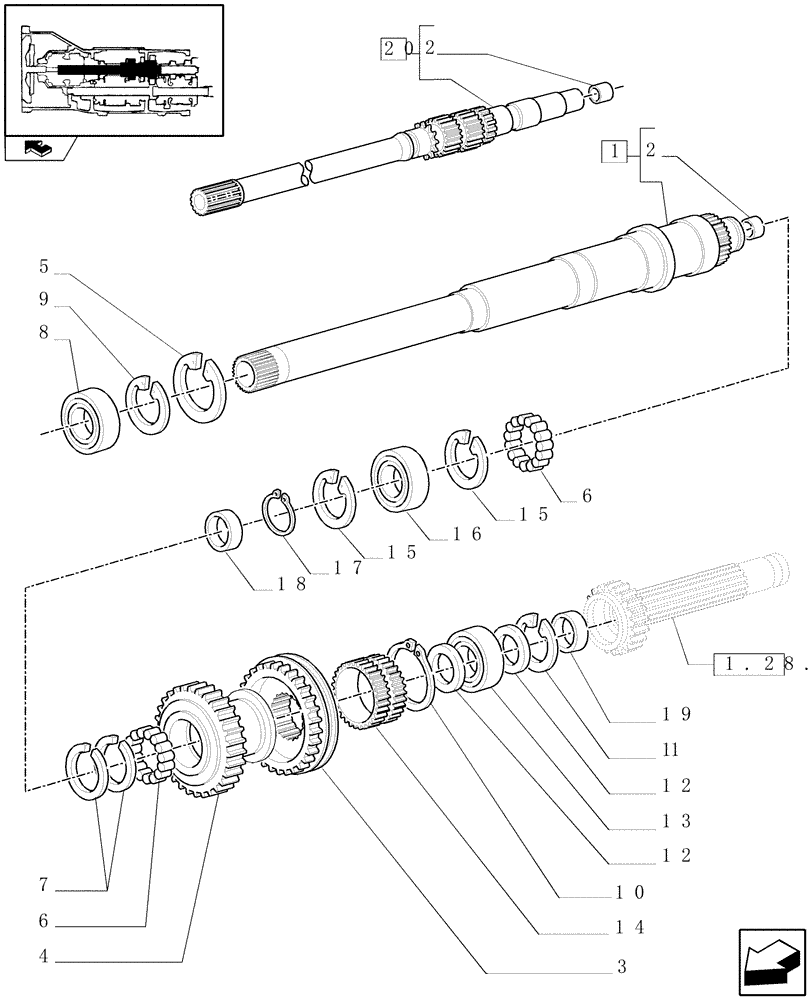

Запчасти Case IH FARMALL 85U (1.28.1[01]) - 12X12 TRANSMISSION - REVERSER SHAFT AND MAIN GEARS (03) - TRANSMISSION

1

5167151

SHAFT

L=648mm

1шт.

With 12x12 transmission only

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28 x 18

1шт.

3

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

4

5164583

DRIVEN GEAR

Reverse Drive Gear 26 Teeth

1шт.

5

11062176

CIRCLIP,M85, Int

1шт.

6

5137225

NEEDLE BEARING CAGE,52mm ID x 57mm OD x 17mm W

2шт.

7

5137224

WASHER,54.7mm ID x 59.3mm OD x 1.5mm Thk

2шт.

8

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

D=45

1шт.

9

5164517

RING

D=68

1шт.

10

11070876

CIRCLIP,M80, Ext

1шт.

11

11068876

SNAP RING,M40, Ext

1шт.

12

5143461

WASHER,40.1mm ID x 56mm OD x 3mm Thk

2шт.

13

47134157

BALL BEARING,40mm ID x 68mm OD x 15mm W

40 x 68 x 15

1шт.

14

5143460

SLEEVE

1шт.

15

11062476

SNAP RING,M90, Int

2шт.

16

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

17

11069376

SNAP RING,M50, Ext

2шт.

18

5164500

SEAL,50mm ID x 90mm OD x 10mm Thk

50 x 90 x 10

1шт.

19

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

25 x 31 x 7

1шт.

20

87368284

SHAFT

1шт.

With 20x12 transmission only

1шт.
