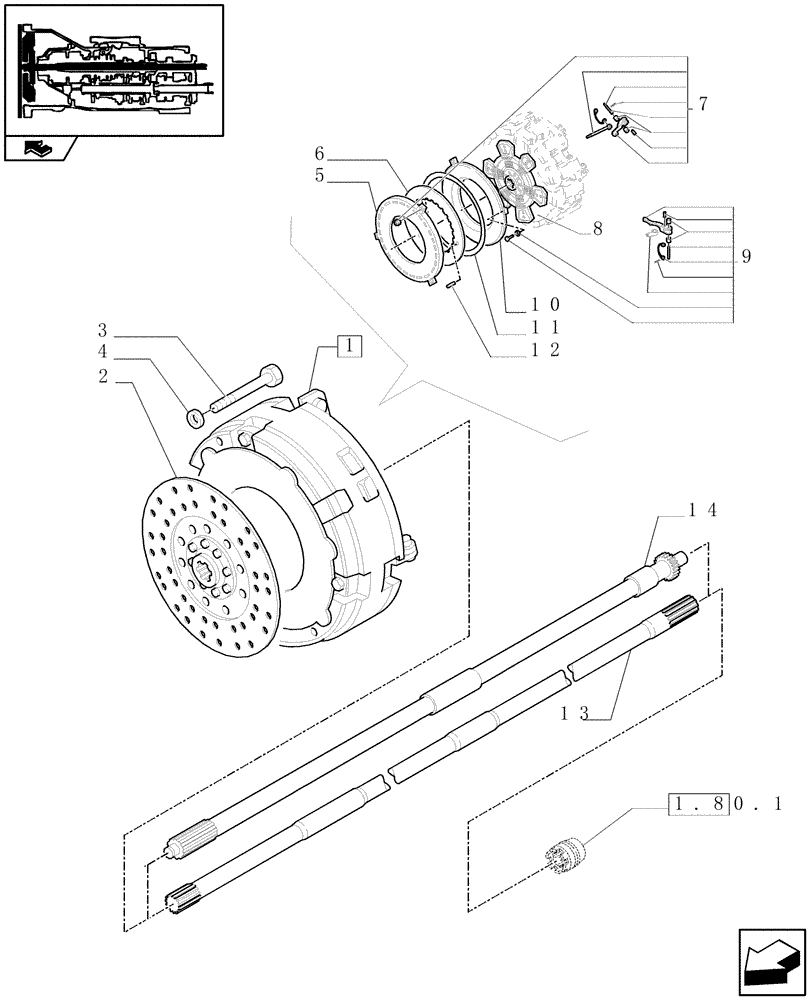

Запчасти Case IH FARMALL 85U (1.25.0[01]) - CLUTCH AND PTO SHAFT (03) - TRANSMISSION

1

5189875

CLUTCH,360mm OD

ASSY

1шт.

1

5189875R

REMAN-CLUTCH PLATE

Farmall 85U

1шт.

1

5189875C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5167937

CLUTCH PLATE,310mm OD

1шт.

2

5167937R

REMAN-CLUTCH PLATE

Farmall 85U

1шт.

2

5167937C

CORE-CLUTCH PLATE

Return Number

1шт.

3

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

5

9968852

PRESSURE RING

1шт.

6

9968853

DIAPHRAGM

1шт.

7

9968855

KIT

1шт.

8

5189825

CLUTCH PLATE

1шт.

8

5189825R

REMAN-CLUTCH PLATE

Reman for New PN 5189825

1шт.

8

5189825C

CORE-CLUTCH PLATE

Return Number

1шт.

9

9966577

KIT

1шт.

10

9968854

PRESSURE RING

1шт.

11

9961816

WASHER, THRUST

1шт.

12

9919443

ROLL PIN

1шт.

13

87339480

SHAFT

1шт.

14

5189504

PTO SHAFT

1шт.

VAR.330807-332807, Mechanical PTO with Ground Speed

1шт.
