Запчасти Case IH FARMALL 85C (90.124.AH[02]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), CUSHION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

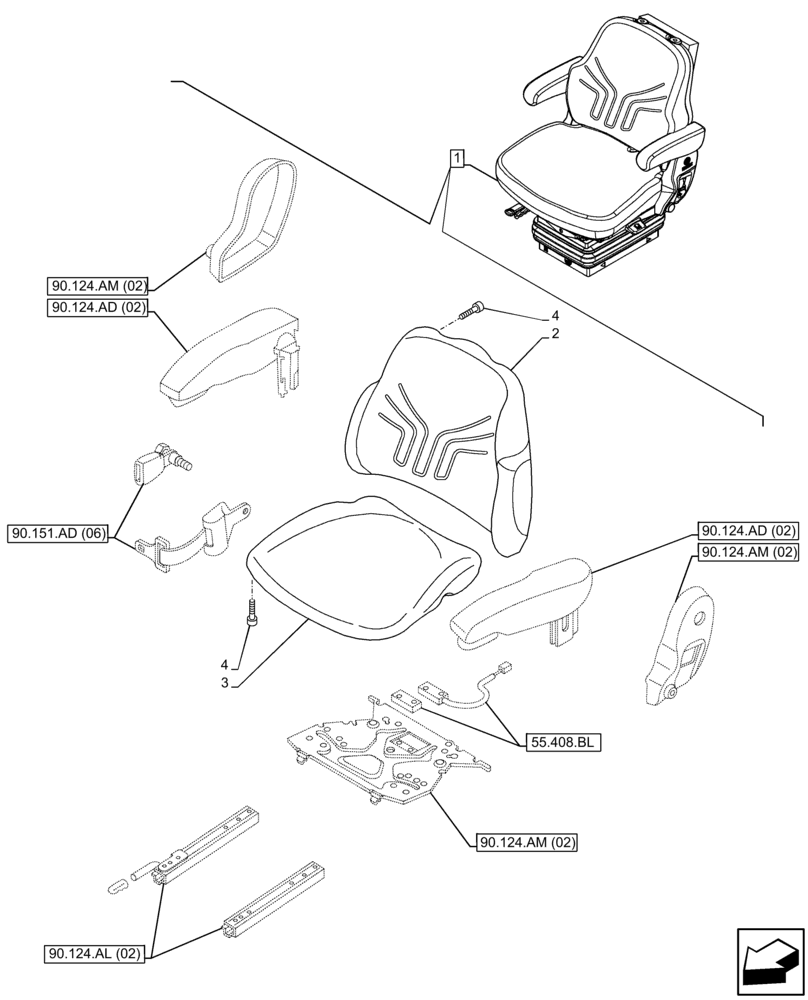

Схема запчастей Case IH FARMALL 85C - (90.124.AH[02]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), CUSHION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad (06)
90.124.al (02)
2
3
90.124.ad (02)
90.124.am (02)
55.408.bl
4
90.124.ad (02)
90.124.am (02)
4
90.124.am (02)
1

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 4

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

84172430

SEAT BACK

Fabric, Wheat

1шт.

3

84281117

SEAT CUSHION

Fabric, Wheat

1шт.

4

84191200

SET OF PARTS

1шт.
