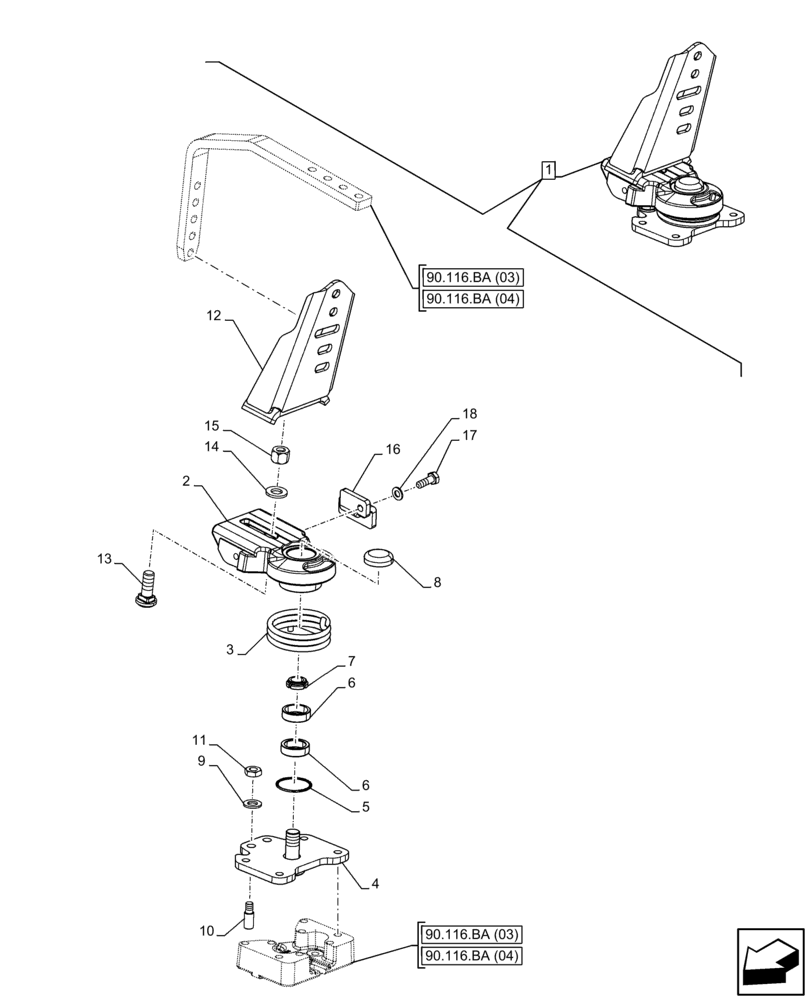

Запчасти Case IH FARMALL 85C (90.116.BA[02]) - VAR - 744674 - DYNAMIC FRONT FENDER, SUPPORT, NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87644544

SUPPORT

RH, ASSY, Incl 2 - 18

1шт.

1

87644517

SUPPORT

LH, ASSY, Incl 2 - 18

1шт.

2

87528107

HUB

1шт.

3

87697271

SPRING

RH

1шт.

3

87697730

SPRING

LH

1шт.

4

87528122

SUPPORT

1шт.

5

47137900

O-RING,2.62mm Thk x 47mm ID

1шт.

6

47137898

ROLLER BEARING,20mm ID x 15mm W

2шт.

7

47137899

NUT,Hex, M20 x 1

M20 x 1mm

1шт.

8

47137902

COVER

1шт.

9

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

15 x 27 x 2.6 x 3.1 ZNM

1шт.

10

47132631

DOWEL,M14 x 1.5mm

M14 x 1.5mm

1шт.

11

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

12

87528133

SUPPORT

RH

1шт.

12

87528148

SUPPORT

LH

1шт.

13

47137907

SCREW,M16 x 1.5

M16 x 1.5mm

1шт.

14

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

15

12575911

NUT,M16 x 1.5, Cl 8

1шт.

16

87751287

SUPPORT

RH

1шт.

16

87751274

SUPPORT

LH

1шт.

17

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

18

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.
