Запчасти Case IH FARMALL 85C (90.116.AX) - VAR - 334190 - REAR FENDER, SIDE PANEL, COVER, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

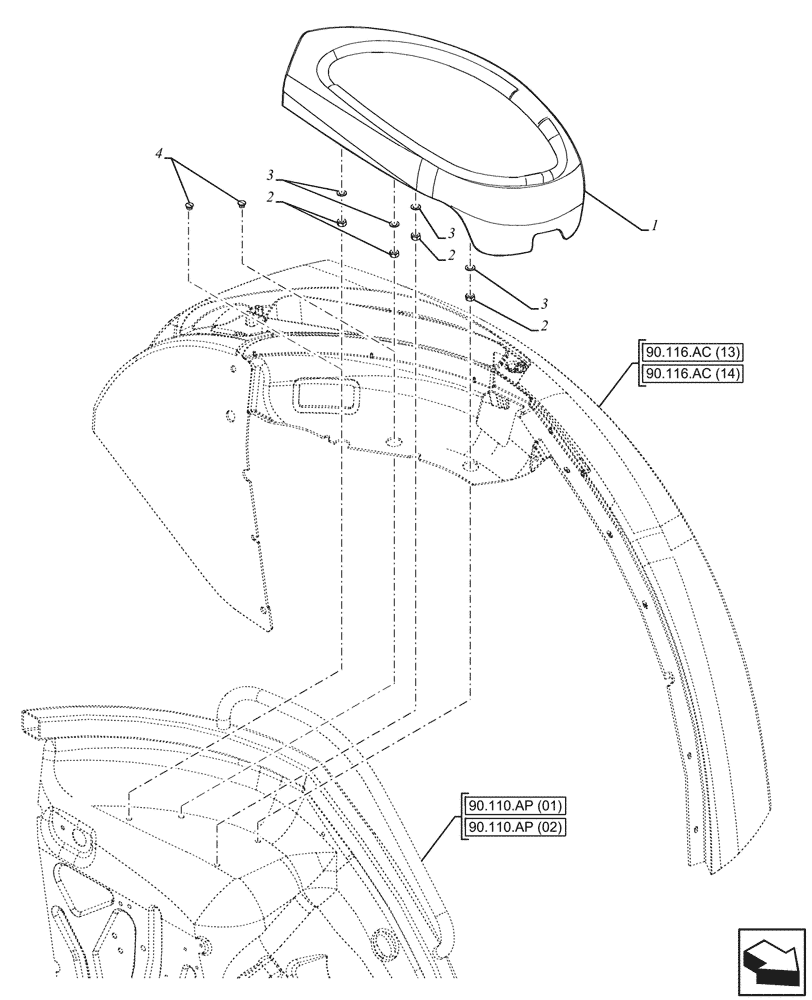

Схема запчастей Case IH FARMALL 85C - (90.116.AX) - VAR - 334190 - REAR FENDER, SIDE PANEL, COVER, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
2
90.116.ac (13)
2
90.110.ap (02)
3
3
90.116.ac (14)
3
90.110.ap (01)
2
4

Артикул

Название

Примечание

Количество

1

47529936

LINING

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

4

82003283

PLUG,10.5mm OD

4шт.

Выбрано товаров: 4
