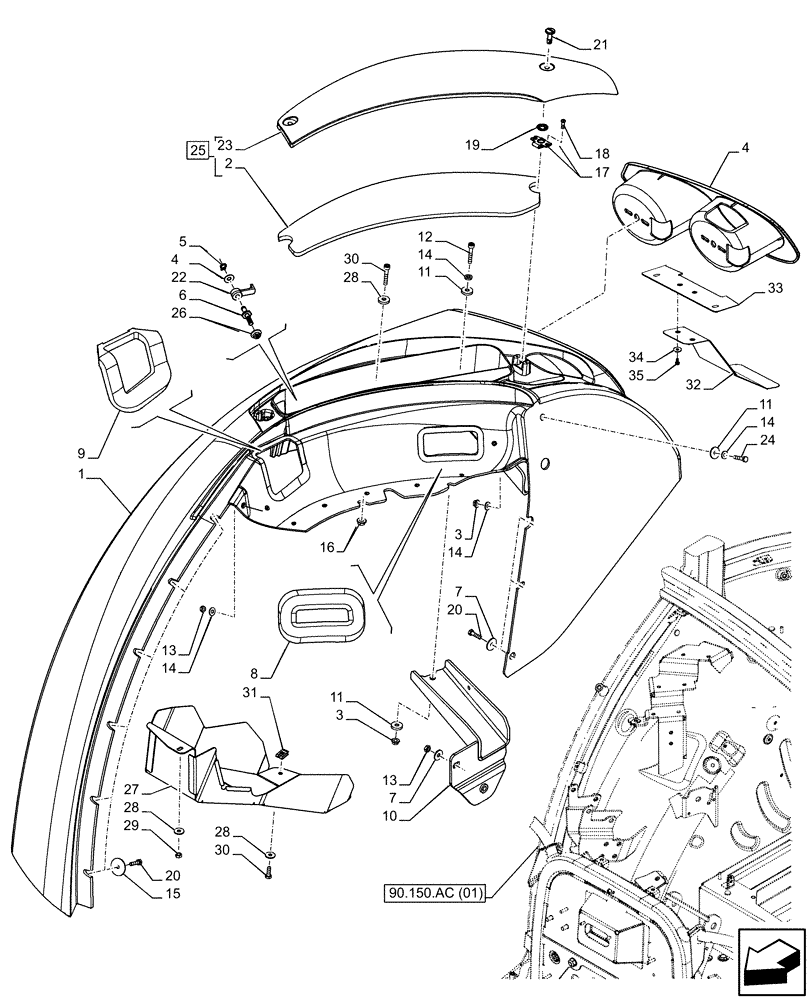

Запчасти Case IH FARMALL 85C (90.116.AC[11A]) - VAR - 743599, 744599 - REAR FENDER, CAB, HI-LO - BEGIN YR 03-JAN-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84529216

REAR FENDER

LH, Red

1шт.

1

84529220

REAR FENDER

RH, Red

1шт.

2

84221543

SEAL,468.5mm L

LH

1шт.

2

84346360

SEAL,468.5mm L

RH

1шт.

3

13046111

LOCK NUT,Flg Lock, M6

M6

4шт.

4

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

5

11065476

SNAP RING,M6, Ext

4шт.

6

84541332

PIN,6mm OD x 37mm L

M6

4шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

8

47701914

SEAL,166mm L

2шт.

9

84234567

SEAL,156mm L

2шт.

10

84315605

BRACKET

LH

1шт.

10

84315616

BRACKET

RH

1шт.

11

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

6шт.

12

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

13

15896214

NUT,M6, Cl 8

4шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

8шт.

15

47567924

WASHER,6.15mm ID x 34mm OD x 1.5mm Thk

6.15 x 34 x 1.5

12шт.

16

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

4шт.

17

84351743

CLIP,9mm ID

9mm ID

4шт.

18

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

M3 x 12

8шт.

19

84290344

THRUST WASHER,13mm OD x 1mm Thk

4шт.

20

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

18шт.

21

84290347

LOCK PIN,6mm OD x 18mm L

4шт.

22

84341983

LOCK KEY

4шт.

23

84337204

TOP COVER

LH, Red

1шт.

23

84337208

TOP COVER

RH, Red

1шт.

24

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

25

84513723

COVER

LH, ASSY, Red, Incl 2, 25

1шт.

25

84513724

COVER

RH, ASSY, Red, Incl 2, 25

1шт.

26

13832101

NUT,Hex, M6 x 1.25

M6

4шт.

27

47632366

BRACKET

LH

1шт.

27

47632380

BRACKET

RH

1шт.

28

13577701

WASHER,5.15mm ID x 15mm OD x 1.2mm Thk

5.15 x 15 x 1.2

8шт.

29

86509265

NUT,M5, Cl 10

2шт.

30

10977834

BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd

6шт.

31

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

4шт.

32

47465431

BRACKET

1шт.

33

47464573

BRACKET

1шт.

34

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

35

10902334

BOLT,Hex, M6 x 18mm, Cl 10.9, Full Thd

4шт.
