Запчасти Case IH FARMALL 85C (90.116.AC[03]) - VAR - 744674 - DYNAMIC FRONT FENDER (310MM), NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

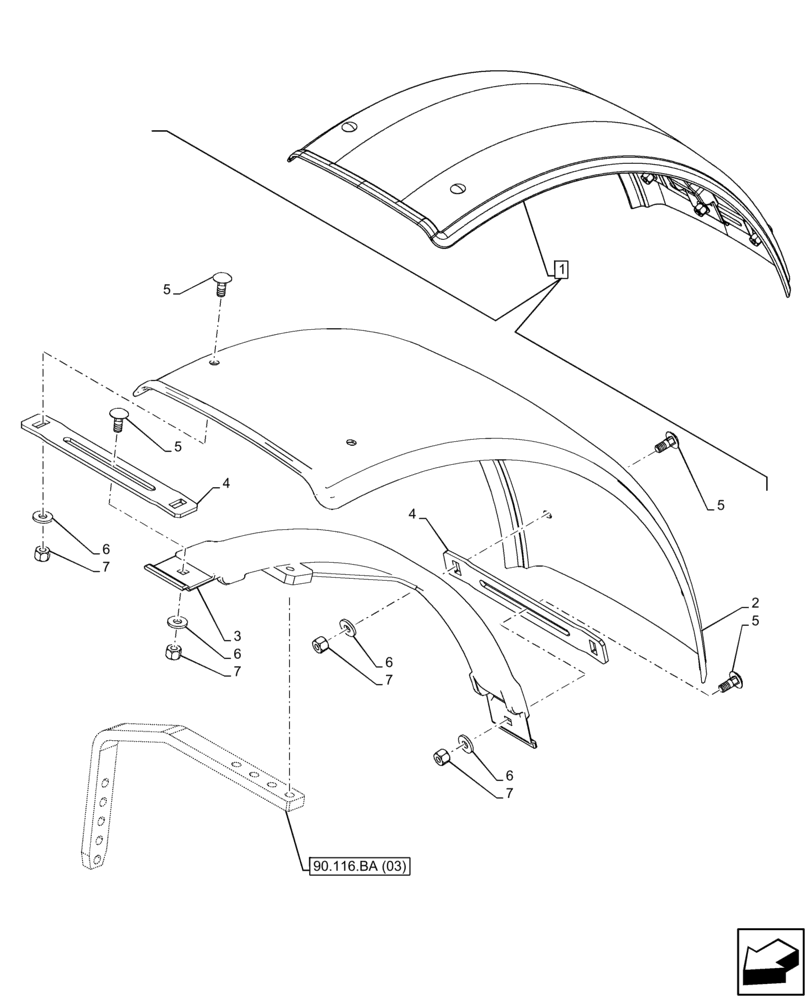

Схема запчастей Case IH FARMALL 85C - (90.116.AC[03]) - VAR - 744674 - DYNAMIC FRONT FENDER (310MM), NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
90.116.ba (03)
2
4
6
7
5
7
6
4
1
7
6
7
3
5
6
5

Артикул

Название

Примечание

Количество

1

87484873

FRONT FENDER,355mm

310mm, ASSY, Incl 2 - 7

2шт.

2

87484889

COVER

Black

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 31mm, Hex

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12574521

LOCK NUT,M10 x 1.25, Cl 10

6шт.

Выбрано товаров: 7
