Запчасти Case IH FARMALL 85C (90.114.AR[02]) - VAR - 334187, 334190 - CANOPY, SPECIAL COLOR (WHITE), W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

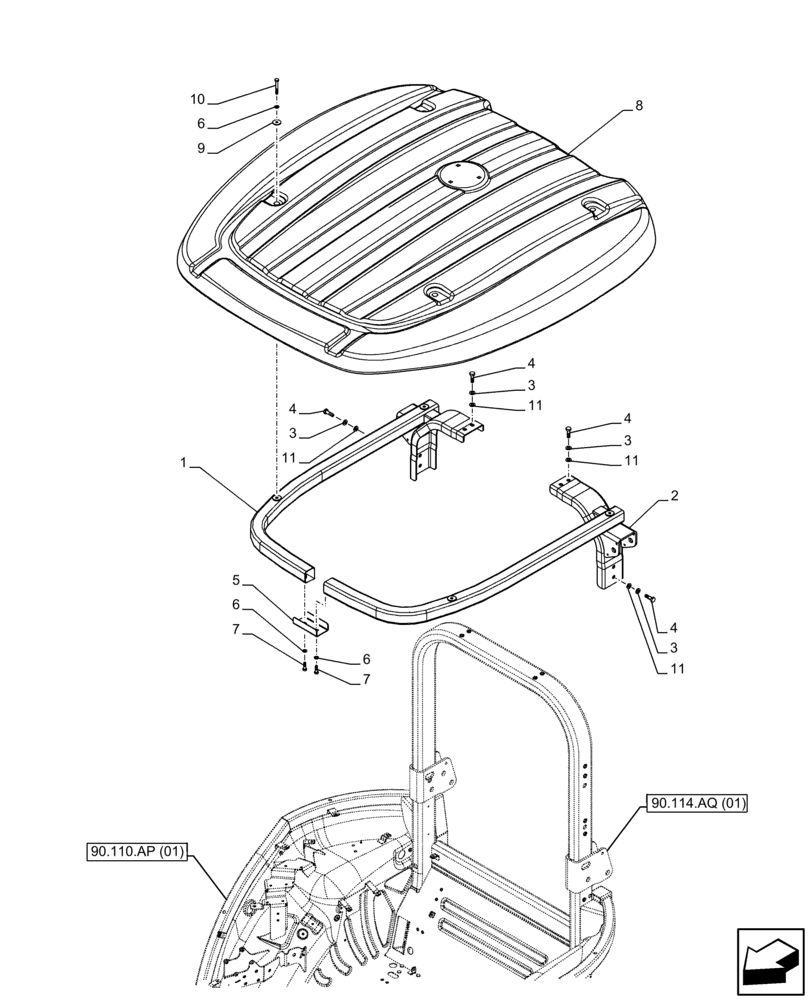

Схема запчастей Case IH FARMALL 85C - (90.114.AR[02]) - VAR - 334187, 334190 - CANOPY, SPECIAL COLOR (WHITE), W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
6
6
3
8
90.110.ap (01)
7
6
5
90.114.aq (01)
11
9
7
4
11
3
4
2
11
11
3
10
3
4

Артикул

Название

Примечание

Количество

1

84356395

BRACKET

RH

1шт.

2

84356451

BRACKET

LH

1шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

5

84356567

BRACKET

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

84359624

ROOF

White

1шт.

9

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

4шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

11

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

8шт.

Выбрано товаров: 11
