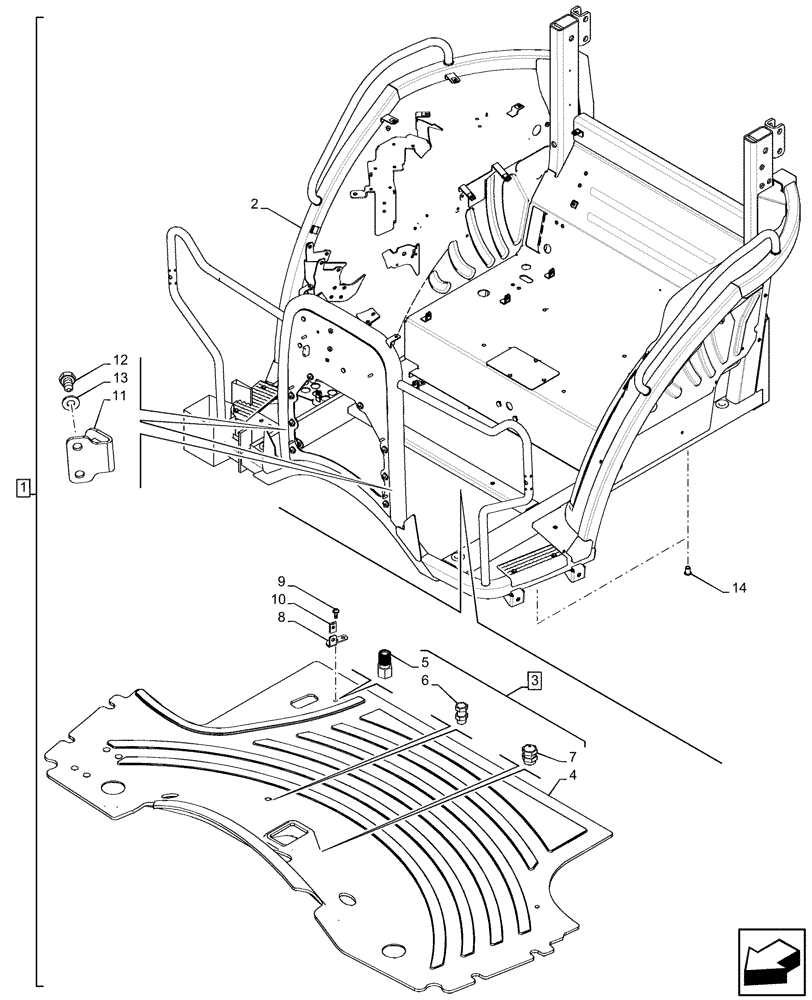

Запчасти Case IH FARMALL 85C (90.110.AP[01]) - VAR - 334187, 334190, 392315, 743565, 743566, 743594 - PLATFORM, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47367724

RIGID PLATFORM

ASSY, Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

3

47365997

FLOOR

ASSY, Incl 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

Platform, Incl in 3

1шт.

5

84338494

THREADED INSERT,M5

1шт.

6

84385705

THREADED INSERT,Stud, M6

1шт.

7

84316158

THREADED INSERT,M6

1шт.

8

84489593

BRACKET

1шт.

9

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

1шт.

10

14371774

SPRING NUT,M6, U, 12mm long

16шт.

11

84601997

BRACKET

2шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

13

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

14

15629111

RIVET,Flat, M8 OD x 17.5mm L

2шт.
