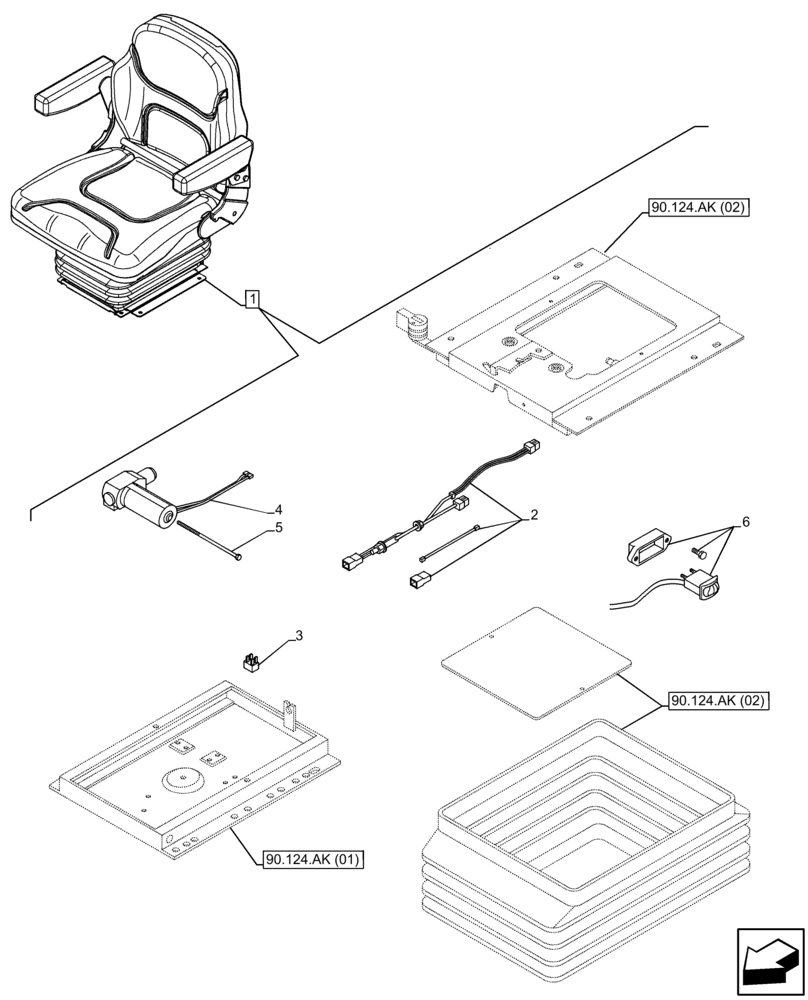

Запчасти Case IH FARMALL 85C (55.512.CQ) - VAR - 331850 - DRIVER SEAT (W/ ARMREST & AIR SUSPENSION), SWITCH, CAB (55) - ELECTRICAL SYSTEMS
90.124.ak (01)
2
4
5
1
6
90.124.ak (02)
90.124.ak (02)
3
№
Артикул
Название
Примечание
Количество
1
84301433
DRIVER SEAT
ASSY, Fabric, Wheat, Incl 2 - 6
1шт.
Air Suspension, W/ Safety Switch, W/ Armrest
1шт.
See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151
1шт.
2
47438936
KIT
Electrical Cable
1шт.
3
47438989
KIT
Rel� 12V
1шт.
4
47438973
KIT
Air Compressor 12V
1шт.
5
NSS
NOT SOLD SEPARAT
Screw, Incl in 1
1шт.
6
47398256
KIT
On/Off Button
1шт.
Выбрано товаров: 8
