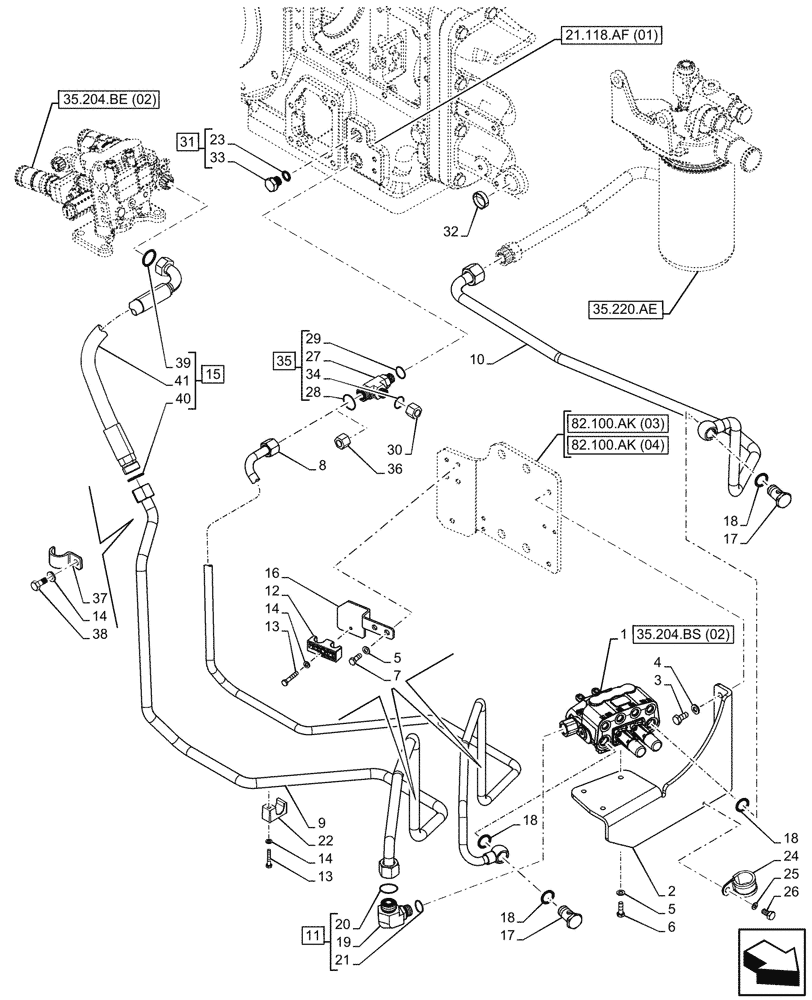

Запчасти Case IH FARMALL 85C (35.204.BS[05]) - VAR - 336125, 338125 - MID-MOUNT CONTROL VALVE, BRACKET, PIPE (35) - HYDRAULIC SYSTEMS

1

47395884

HYDRAULIC VALVE

Front Loader MMV Valve

1шт.

2

84516563

BRACKET

1шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

M8 x 25

2шт.

8

47575527

PIPE

Return MMV

1шт.

9

47575549

PIPE

From MMV to Remote Valve

1шт.

10

47375175

TUBE

Delivery MMV

1шт.

11

79099899

ELBOW

ASSY, Incl 19 - 21

1шт.

12

84465237

BLOCK

1шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

14

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

15

84363868

HOSE,15.9mm ID x 555mm L

To Rear Remote Valve, ASSY, Incl 39 - 41

1шт.

16

84526895

BRACKET

1шт.

17

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

18

87667808

SEAL,22mm ID x 30mm OD x 1.5mm Thk

Self Centering M22

4шт.

19

79112066

HYD CONNECTOR,90°, M22 x 1.5, 1"3/16-12

Body, Incl in 11

1шт.

20

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

122057

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2,62 x 18,72

1шт.

22

84428662

BLOCK,20.4mm

1шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

24

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

22MM Insul M6 Bolt

1шт.

25

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

26

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

27

NSS

NOT SOLD SEPARAT

Tee Body, Incl in 35

1шт.

28

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

29

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

30

9625546

CAP,11/16" - 16 ORFS

1шт.

31

86981620

PLUG,M16 x 1.5, ORB

ASSY, Incl in 42, 43

1шт.

32

14329101

PLUG,M30, Tapered

1шт.

33

NSS

NOT SOLD SEPARAT

Plug, Incl in 31

1шт.

34

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

35

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

ASSY, Incl in 27 - 29, 34

1шт.

36

9840576

CAP,1" - 14 ORFS

1шт.

37

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

38

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

41

NSS

NOT SOLD SEPARAT

Hose, Incl in 15

1шт.
