Запчасти Case IH FARMALL 85C (27.120.AF[02]) - VAR - 390411 - FINAL DRIVE, SHAFT & GEAR, 4WD, HI-LO, CAB (27) - REAR AXLE SYSTEM

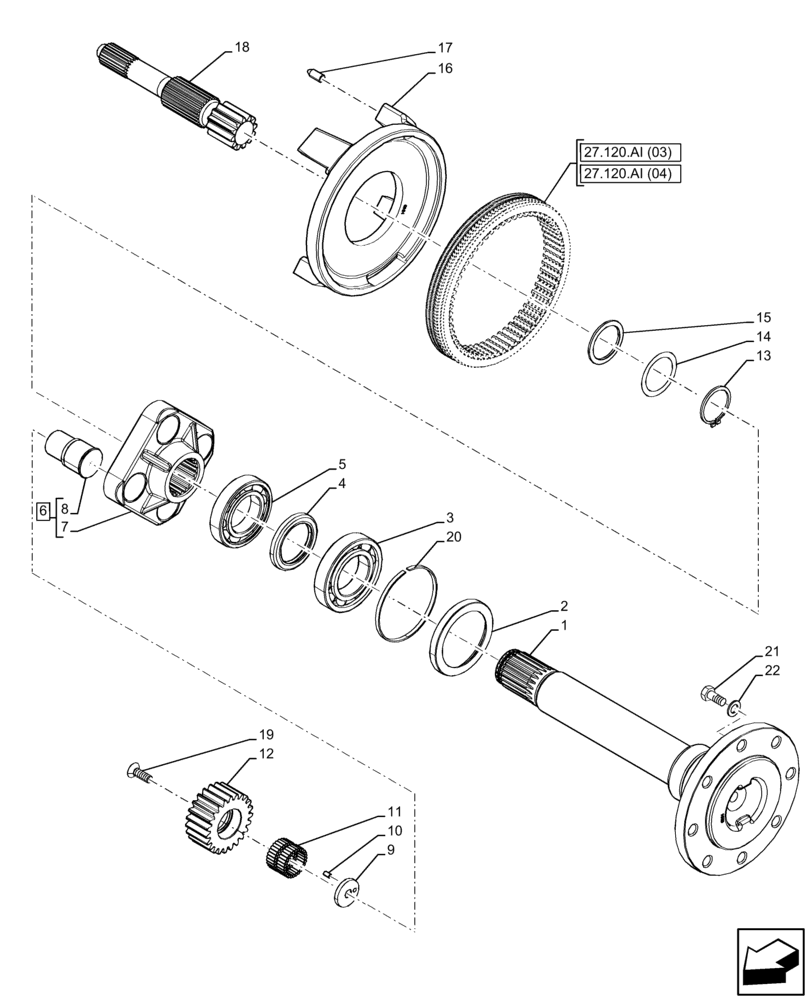

Схема запчастей Case IH FARMALL 85C - (27.120.AF[02]) - VAR - 390411 - FINAL DRIVE, SHAFT & GEAR, 4WD, HI-LO, CAB (27) - REAR AXLE SYSTEM
11
15
12
20
6
18
17
2
9
10
21
5
3
4
8
27.120.ai (03)
1
22
7
14
16
13
27.120.ai (04)
19

Артикул

Название

Примечание

Количество

1

47477234

AXLE

1шт.

2

5135387

OIL SEAL,90mm ID x 120mm OD x 13mm Thk

1шт.

3

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

4

5131495

RUBBER SEAL,65mm ID x 90mm OD x 10mm Thk

1шт.

5

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

6

47361080

PLANET CARRIER

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

47361074

PIN,44.4mm OD x 74mm L

4шт.

9

84318094

SPACER,13mm ID x 43.8mm OD x 7mm L

4шт.

10

10489520

PIN,6mm OD x 12mm L

6 x 12 R80

4шт.

11

84340307

NEEDLE BEARING,38.2mm ID x 48.2mm OD x 15.8mm Thk

4шт.

12

84318093

GEAR,23T, 48.2mm ID, 44mm L

4шт.

13

84349416

CIRCLIP

1шт.

14

84472864

SHIM,55.3mm ID x 72.5mm OD x 0.15mm Thk

1шт.

15

84336055

SPACER,55mm ID x 70mm OD x 4mm L

1шт.

16

47565299

SUPPORT

1шт.

17

87590370

DOWEL

2шт.

18

47361102

SHAFT,299mm L

LH, 299mm

1шт.

18

47361103

SHAFT,265.5mm L

RH, 265.5mm

1шт.

19

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

4шт.

20

5152729

SPACER,117mm ID x 121mm OD x 6.5mm L

1шт.

21

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

8шт.

22

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

8шт.

Выбрано товаров: 23
