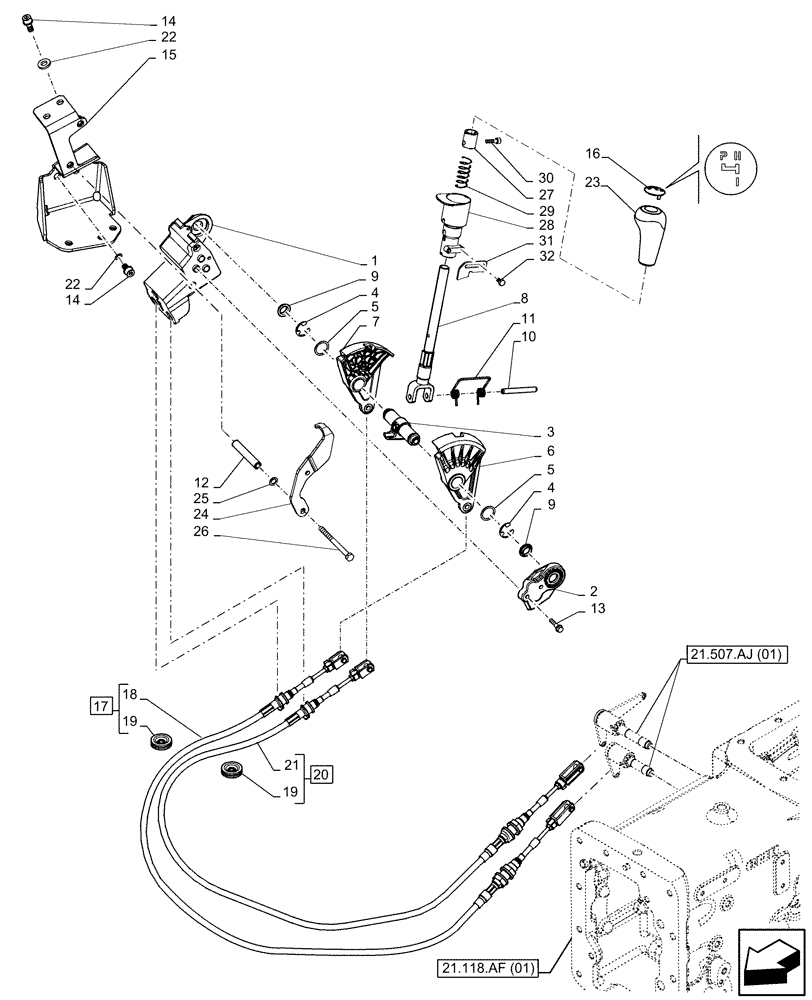

Запчасти Case IH FARMALL 85C (21.134.AI[06]) - VAR - 390275 - TRANSMISSION, CONTROL LEVER, GEARSHIFT, HI-LO, W/O CAB (21) - TRANSMISSION

1

84338365

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84338371

SUPPORT

, Years: -09-JAN-14

1шт.

6

84583494

FERRULE

, Start Year: 10-JAN-14

1шт.

7

84478534

FERRULE

, Years: -09-JAN-14

1шт.

7

84583495

FERRULE

, Start Year: 10-JAN-14

1шт.

8

84295383

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

84488301

BRACKET

1шт.

16

84381836

INSERT

Range Control Lever, Years: -09-JAN-14

1шт.

16

84581845

, Start Year: 10-JAN-14

1шт.

17

84366193

BOWDEN CONTROL

Range Control, RH, ASSY, Incl 18, 19 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 17

1шт.

19

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

20

84366194

BOWDEN CONTROL

Range Control, LH, ASSY, Incl 21, 19 (Qty 1)

1шт.

21

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 20

1шт.

22

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

23

84210474

KNOB

1шт.

24

84475339

RETAINING PLATE

1шт.

25

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

27

84475350

SPACER,16mm ID x 23.5mm OD x 28mm L

1шт.

28

84475348

SELECTOR

1шт.

29

84491783

SPRING,Compression, 20mm OD x 54mm L

1шт.

30

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

31

84475340

PLATE

1шт.

32

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.
