Запчасти Case IH FARMALL 85C (90.102.AW) - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

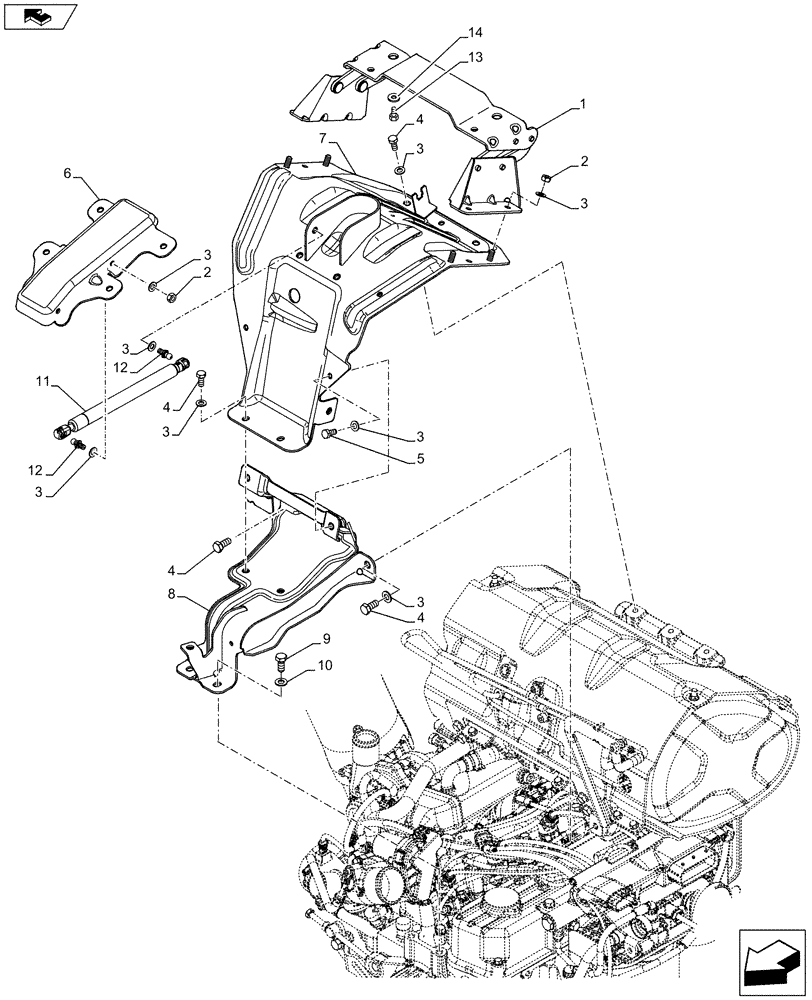

Схема запчастей Case IH FARMALL 85C - (90.102.AW) - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
home
9
2
3
12
3
4
14
4
3
3
10
12
3
6
2
7
5
3
3
13
1
3
11
4
8

Артикул

Название

Примечание

Количество

1

84338467

HINGE

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

5шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

13шт.

4

16043414

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

7шт.

5

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

6

84417852

BRACKET

1шт.

7

84487109

SUPPORT

1шт.

8

84538400

SUPPORT

1шт.

9

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

2шт.

10

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

11

47380065

GAS STRUT

1шт.

12

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

13

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

8шт.

14

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

2шт.

Выбрано товаров: 14
