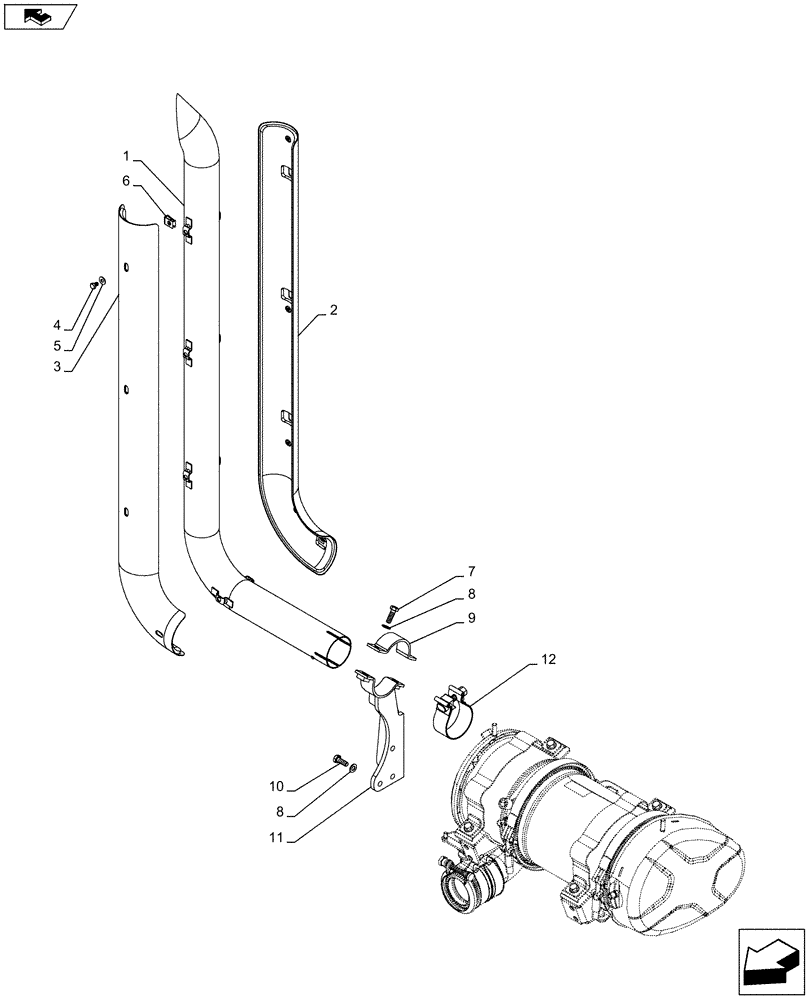

Запчасти Case IH FARMALL 85C (10.254.AD[02]) - VAR - 391151 - EXHAUST SYSTEM PIPE, W/O CAB (10) - ENGINE

1

84475935

UNLOADING TUBE

1шт.

2

47361646

HEAT SHIELD

1шт.

3

47361641

HEAT SHIELD

1шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

8шт.

5

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

8шт.

6

14189071

SPRING NUT,M6

8шт.

7

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

9

47128424

COLLAR

1шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

11

84551446

BRACKET

1шт.

12

84499086

CLAMP,64.9mm

1шт.
