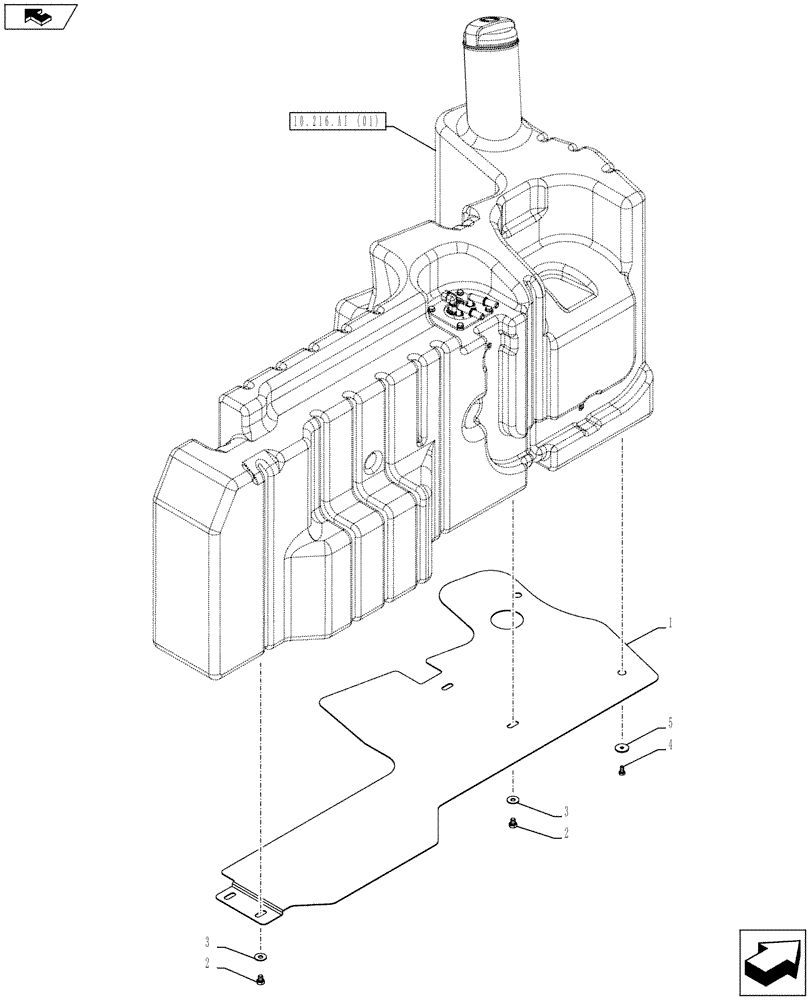

Запчасти Case IH FARMALL 85C (10.216.AI[03]) - VAR - 744574 - FUEL TANK, PROTECTION PLATE (10) - ENGINE

1

84265222

PLATE

1шт.

2

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

3

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

4

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

5

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.
