(10.103.AH[06]) - VAR - 744762, 744763 - ENGINE FLYWHEEL (12X12, 20X20), POWERSHUTTLE

Запчасти Case IH FARMALL 85C (10.103.AH[06]) - VAR - 744762, 744763 - ENGINE FLYWHEEL (12X12, 20X20), POWERSHUTTLE (10) - ENGINE

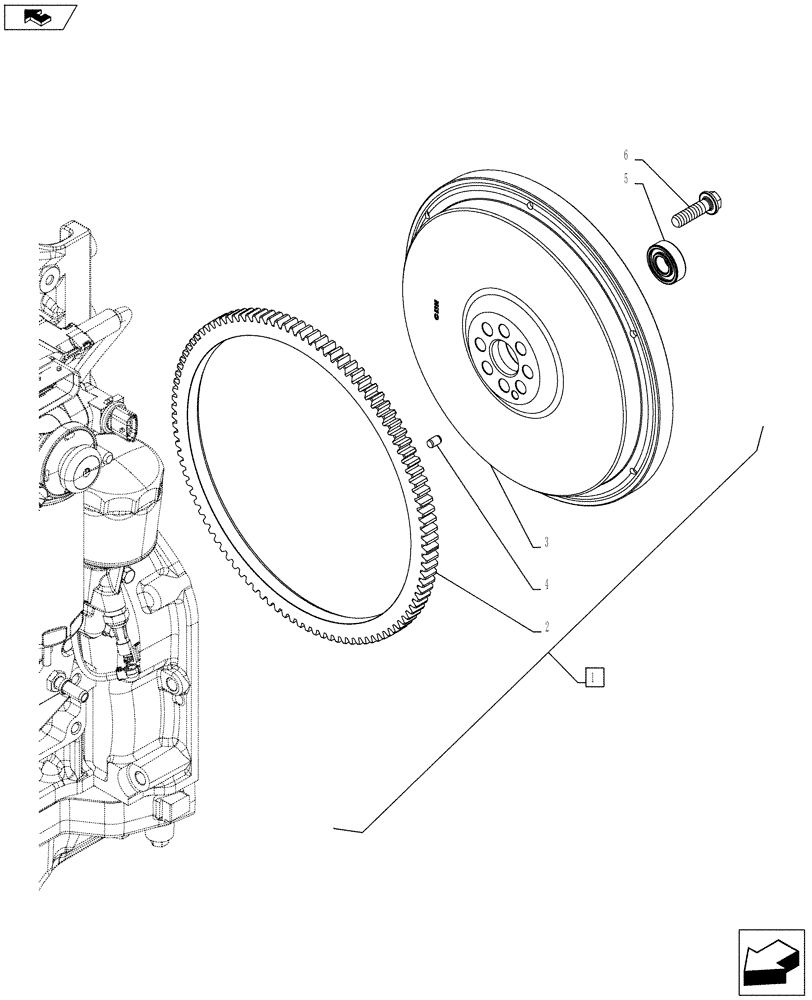

Схема запчастей Case IH FARMALL 85C - (10.103.AH[06]) - VAR - 744762, 744763 - ENGINE FLYWHEEL (12X12, 20X20), POWERSHUTTLE (10) - ENGINE
2
3
1
5
4
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84393159

ENGINE FLYWHEEL,334mm OD, W/ Ring Gear

1шт.

2

47133696

RING GEAR,104T

1шт.

3

84393158

ENGINE FLYWHEEL

1шт.

4

10839610

DOWEL,M8 x 12mm

1шт.

5

87729147

SPHERICAL BEARING,17mm ID x 40mm OD x 12mm

1шт.

6

87686924

WHEEL BOLT,Hex Serr Flg , M12 x 1.25 x 42.50mm, Cl 10.9

8шт.
