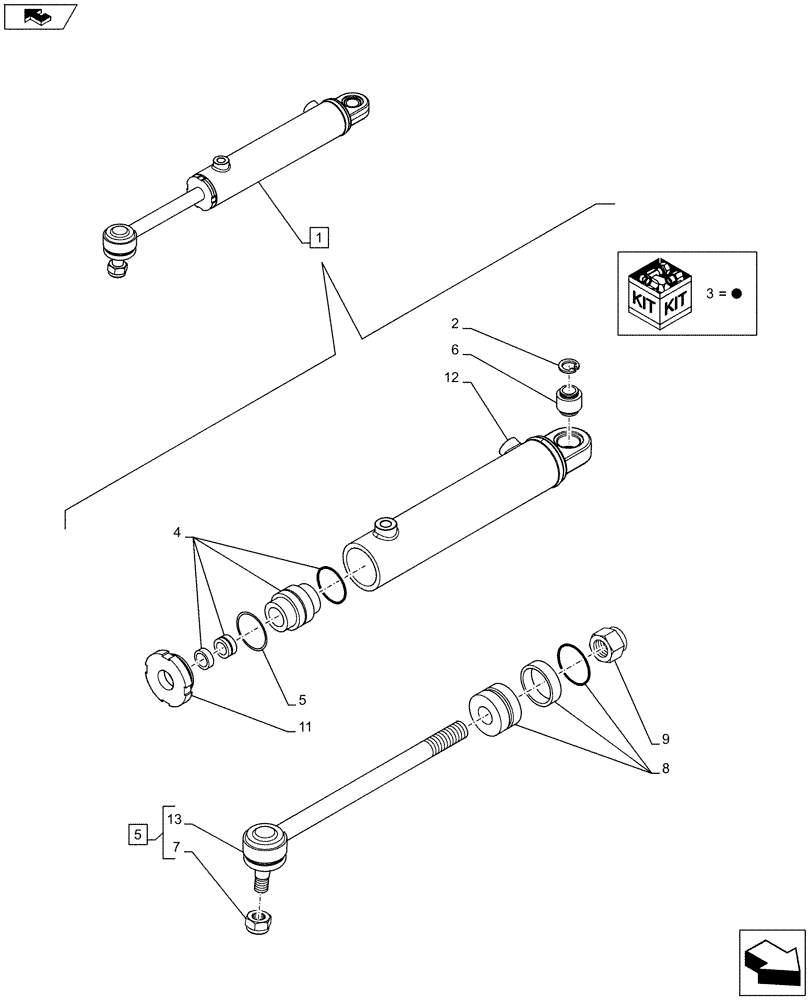

Запчасти Case IH FARMALL 85C (41.216.AB[02]) - VAR - 330581 - OPERATING CYLINDER (2WD), COMPONENTS (41) - STEERING

1

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

ASSY, Incl 2 - 13

1шт.

2

5190903

LOCKING RING

1шт.

3

84249604

SEAL KIT

1шт.

4

9961913

JACK PISTON

1шт.

5

5190912

LOCKING RING

1шт.

6

5190901

BUSHING

1шт.

7

12575921

NUT,M16 x 1.5, Cl 05

ASSY, Incl 7, 10

1шт.

8

5190908

PISTON

1шт.

9

5190904

LOCK NUT

1шт.

10

9962304

ROD

1шт.

11

9961915

RING NUT

1шт.

12

NSS

NOT SOLD SEPARAT

Cylinder body, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.
