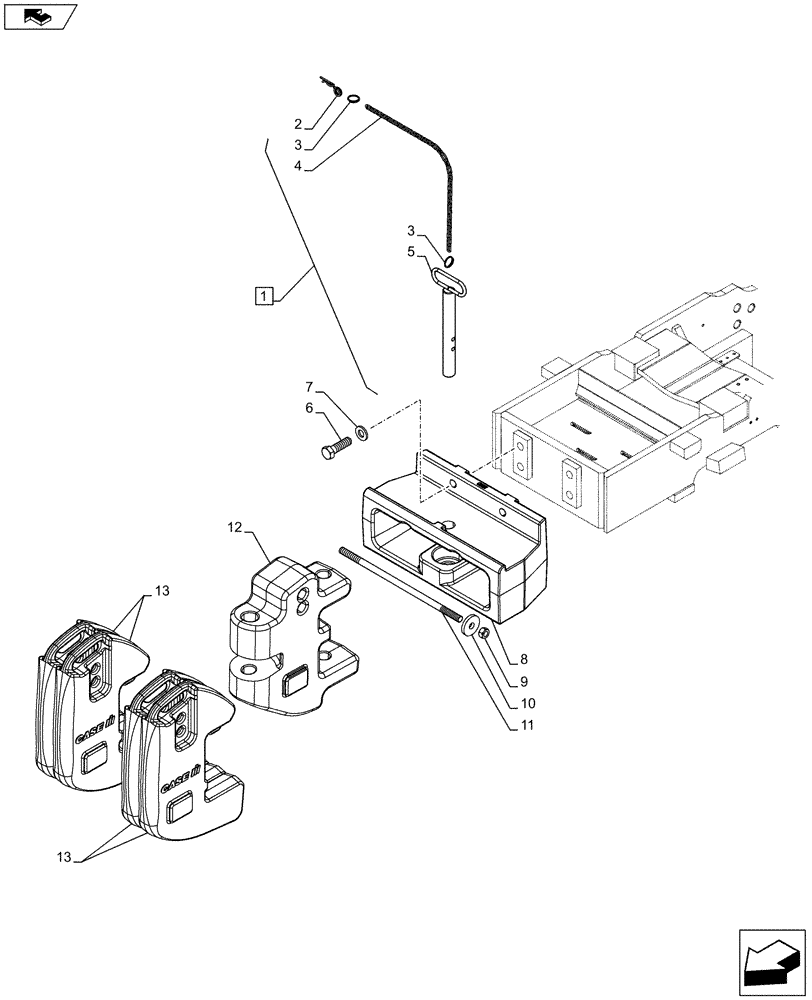

Запчасти Case IH FARMALL 85C (39.140.AF[05]) - VAR - 334215 - FRONT WEIGHT CARRIER, BALLAST (160KG) (39) - FRAMES AND BALLASTING

1

47132417

PIN,3.6mm OD x 64mm L

ASSY, Incl 2 - 5

2шт.

2

44901190

COTTER PIN,6.3mm x 77.6mm L

1шт.

3

44901192

SNAP RING,25mm ID

2шт.

4

NSS

NOT SOLD SEPARAT

Chain, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

6

11125131

BOLT,Hex, M20 x 70, 10.9

M20 x 70

4шт.

7

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20 x 38 x 4.6

4шт.

8

84479218

SUPPORT,60 Kg

1шт.

9

392530

NUT,M16, Cl 10

M16

2шт.

10

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

2шт.

11

84479192

THREADED ROD,M16 x 2 x 507mm L

1шт.

12

87325015

WEIGHT,75Kg/165Lb

1шт.

13

47056220

WEIGHT,40Kg/88Lb

40 Kg

4шт.
