Запчасти Case IH FARMALL 85C (37.162.AE[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, SUPPORT, WITH FRONT PTO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

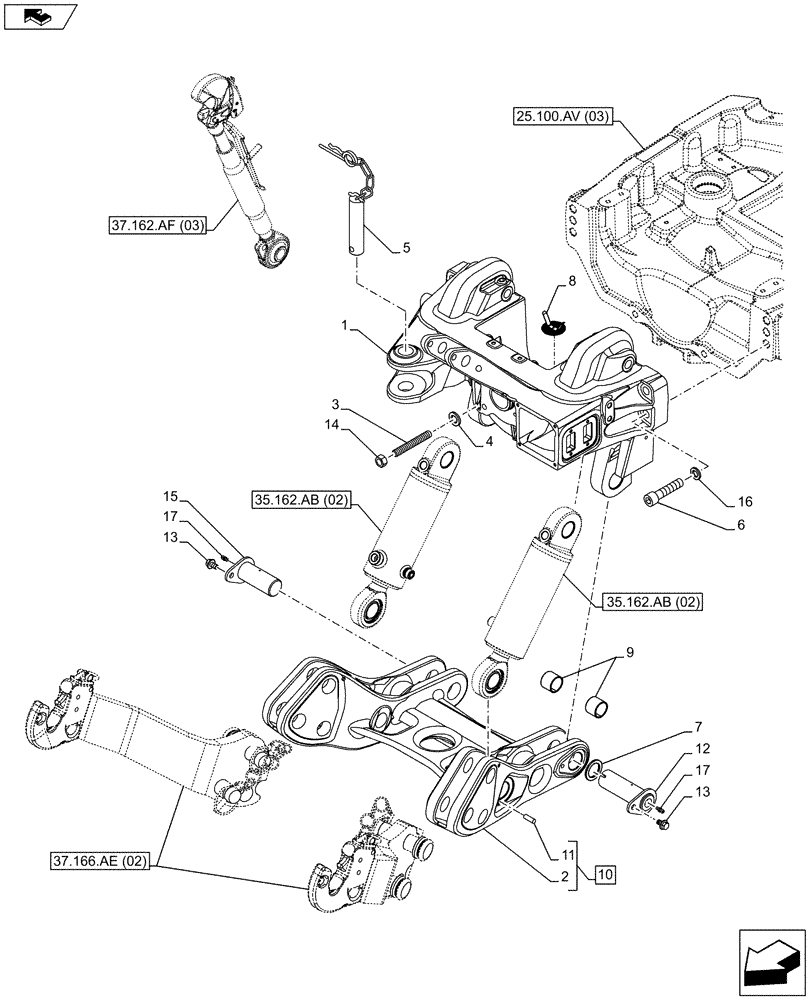

Схема запчастей Case IH FARMALL 85C - (37.162.AE[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, SUPPORT, WITH FRONT PTO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.162.af (03)
37.166.ae (02)
2
15
17
25.100.
1
home
35.162.ab (02)
v (03)
9
13
a
8
6
17
5
16
11
7
10
4
12
35.162.ab (02)
3
13
14

Артикул

Название

Примечание

Количество

1

84313803

CARRIER

1шт.

2

NSS

NOT SOLD SEPARAT

Rocker, Incl in 10

1шт.

3

47362429

STUD,M16 x 85mm L

2шт.

4

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

5

84336833

HITCH PIN,31.5mm OD x 245mm L

1шт.

6

14844834

SCREW,M18 x 1.5 x 80mm, Cl 10.9

4шт.

7

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

2шт.

8

5120218

GRILLE

1шт.

9

84545855

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

10

84480797

ROCKER

ASSY, Incl 11, 2

1шт.

11

9780097

DOWEL,M8 x 30

2шт.

12

84372468

PIN,40mm OD x 132mm L

1шт.

13

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

2шт.

14

392530

NUT,M16, Cl 10

2шт.

15

84399065

PIN,40mm OD x 105mm L

1шт.

16

10520301

WASHER,18.4mm ID x 32mm OD x 4mm Thk

4шт.

17

87588865

FITTING,M6 x 1 x 12mm L

2шт.

Выбрано товаров: 17
