Запчасти Case IH FARMALL 85C (37.110.AQ[05]) - VAR - 743595 - HYDRAULIC LIFT, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

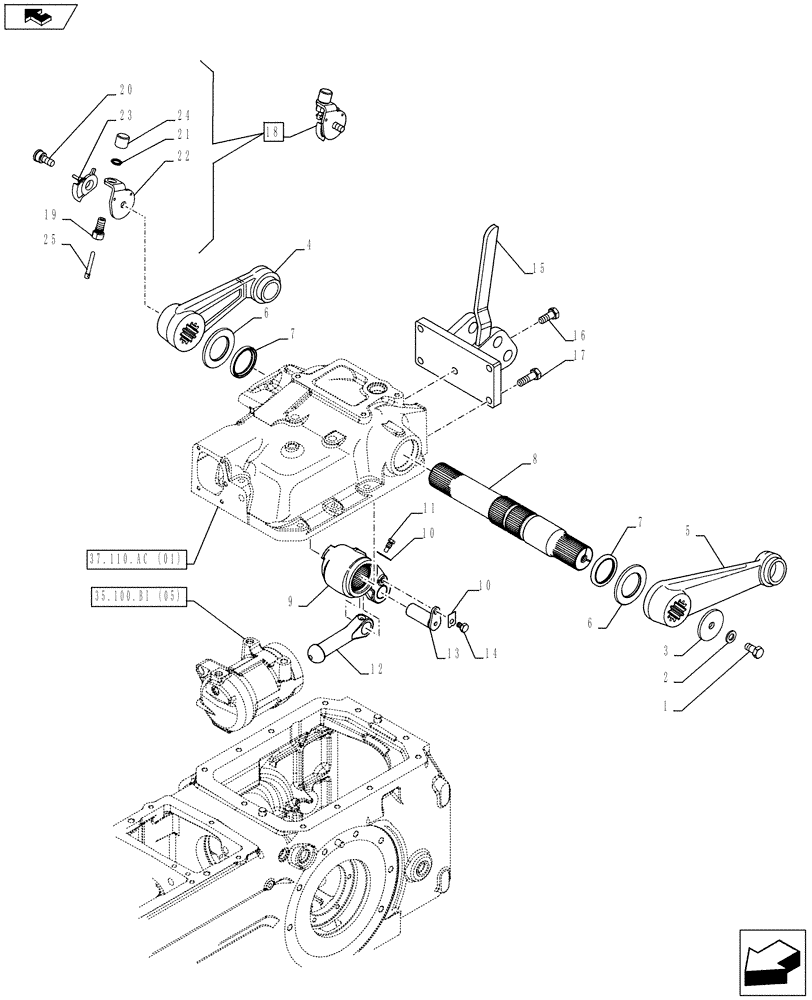

Схема запчастей Case IH FARMALL 85C - (37.110.AQ[05]) - VAR - 743595 - HYDRAULIC LIFT, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
12
11
19
37.110.ac (01)
22
home
3
20
10
14
6
17
2
25
10
9
7
18
6
21
7
5
24
13
1
15
23
8
4
35.100.bi (05)
16

Артикул

Название

Примечание

Количество

1

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

2

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

3

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

1шт.

4

5171471

LIFT ARM

RH

1шт.

5

5123957

LIFT ARM

LH

1шт.

6

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

7

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

2шт.

8

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

9

5165510

ARM

1шт.

10

14198810

LOCKING PLATE,M10

2шт.

11

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.

12

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

13

5122356

PIN,30mm OD x 74mm L

1шт.

14

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

15

47396609

SUPPORT

1шт.

16

11408334

BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd

1шт.

17

11394324

BOLT,Hex, M14 x 45, 8.8, Full Thd

4шт.

18

47134460

STOP

ASSY, Incl 19, 21 - 25

1шт.

19

5194677

BOLT,Bolt

Incl in 18

1шт.

20

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.

21

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Incl in 18

1шт.

22

87696283

SUPPORT

Incl in 18

1шт.

23

47134217

SECTOR

Incl in 18

1шт.

24

47134218

KNOB

Incl in 18

1шт.

25

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

Incl in 18

1шт.

Выбрано товаров: 25
