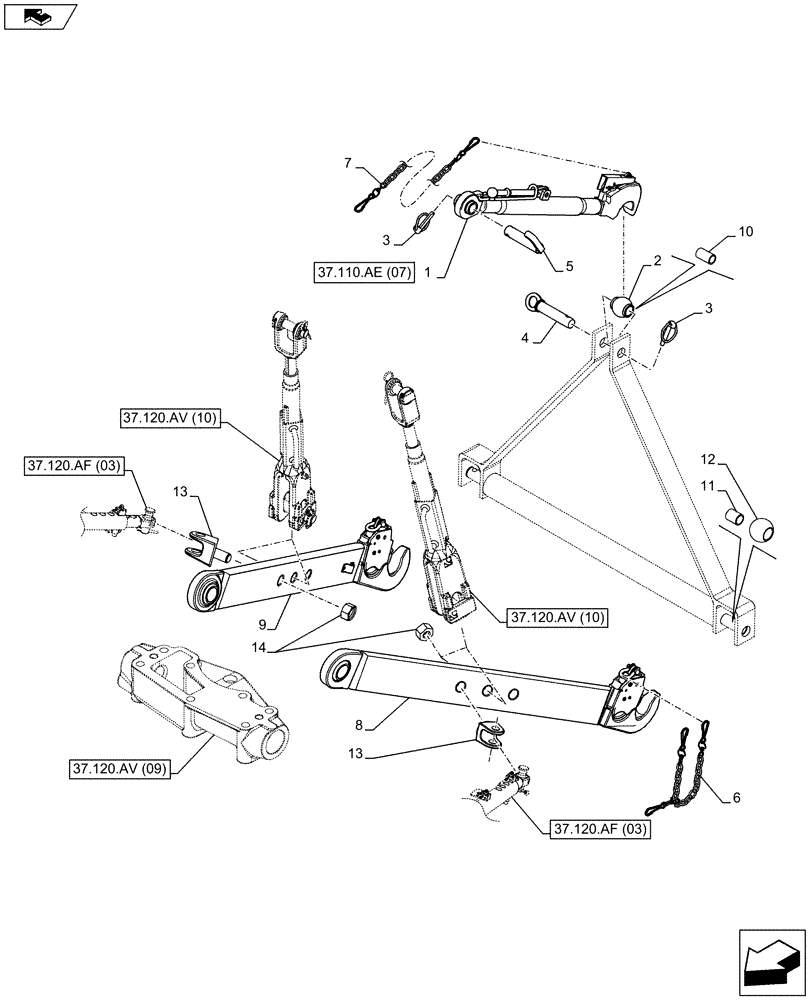

Запчасти Case IH FARMALL 85C (37.110.AE[03]) - VAR - 332953 - LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47391766

STRUT

ASSY

1шт.

2

5172480

BALL,25.4mm ID x 50mm OD

1шт.

3

5166585

LOCK PIN,11mm OD

4шт.

4

822483

PIN,25.5mm OD x 137mm L

1шт.

5

84486705

HEADED PIN

1шт.

6

5116063

ROPE,4500mm L

1шт.

7

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.

8

47397097

LIFT ARM

LH

1шт.

9

47397096

LIFT ARM

RH

1шт.

10

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.

11

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

2шт.

12

822441

BUSHING,29mm ID x 56mm OD x 44.5mm L

2шт.

13

47397092

PIN

2шт.

14

12164311

NUT,Hex, M20 x 1.5

2шт.
