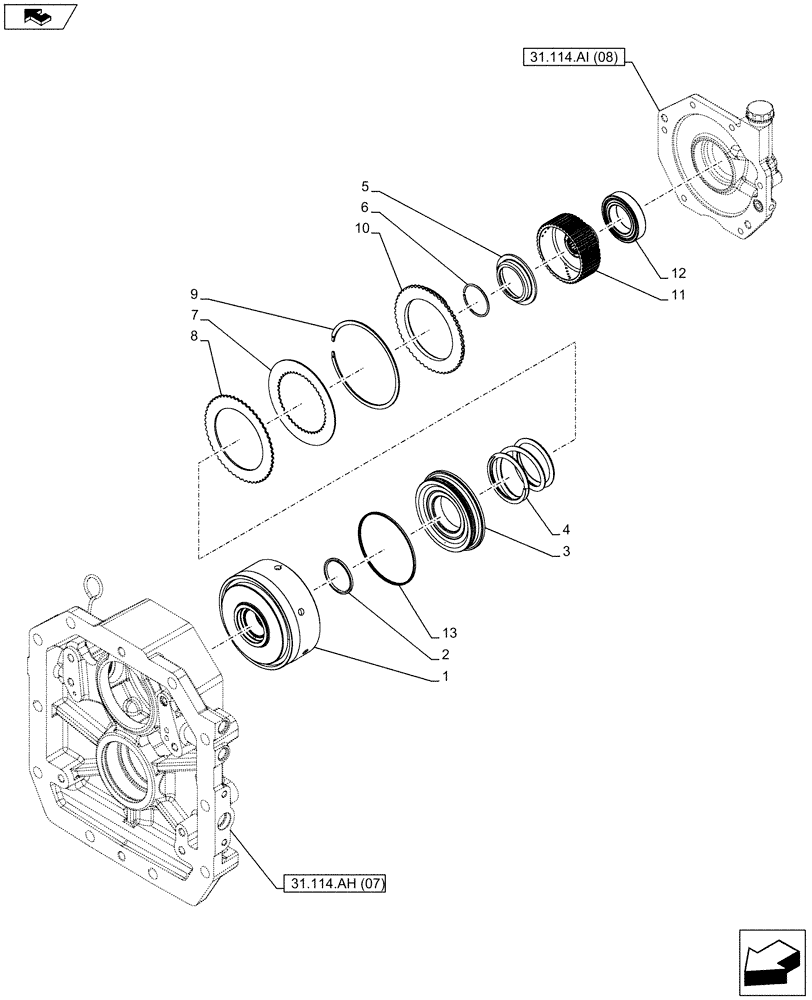

Запчасти Case IH FARMALL 85C (31.114.AI[01]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

5189184

HOUSING

housing complete with hub

1шт.

2

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

1шт.

3

5189185

PISTON

1шт.

4

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

5

5193205

RETAINER CUP

1шт.

6

13399376

SNAP RING,M50, Int

1шт.

7

5165951

CLUTCH PLATE

5шт.

8

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

5шт.

9

5124067

CIRCLIP

1шт.

10

5188572

CLUTCH PLATE

1шт.

11

5193206

HUB

supporting the PTO clutch

1шт.

12

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

D= 45 x 75 x 16 mm

1шт.

13

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.
