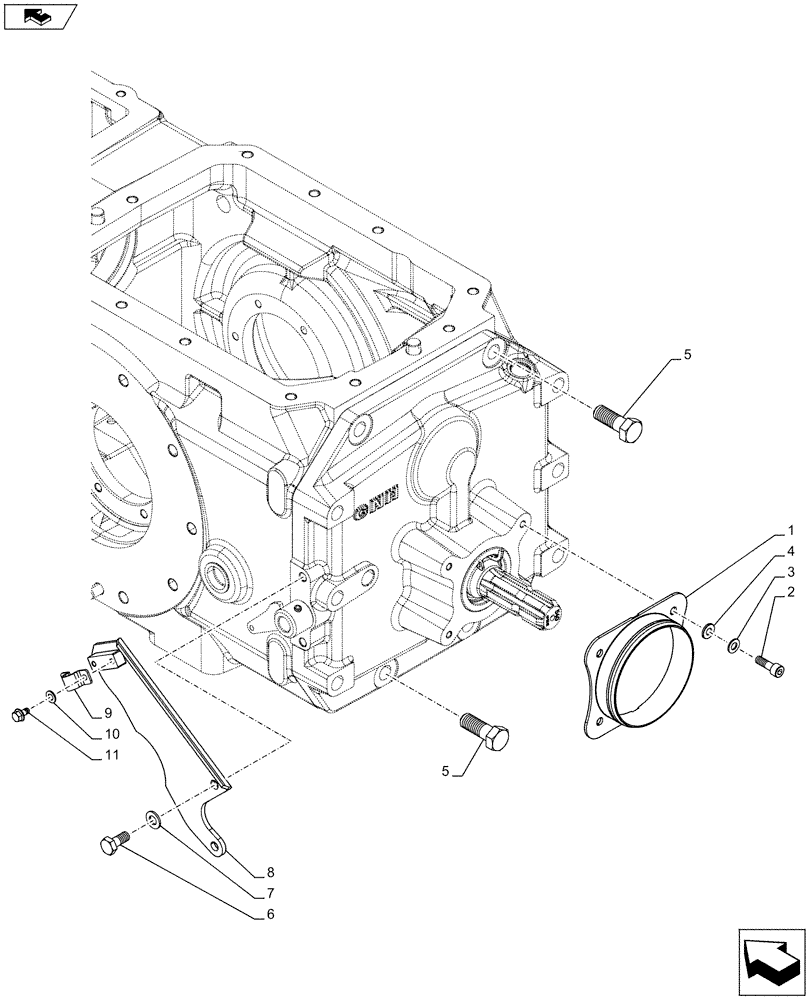

Запчасти Case IH FARMALL 85C (31.114.AH[04]) - VAR - 743519 - PTO 540-540E RPM W/ GROUND SPEED, MECHANICAL, CASING, SHROUD, W/O CAB - ISO (31) - IMPLEMENT POWER TAKE OFF

1

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

2

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

10730324

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

5

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

8

84488280

BRACKET

1шт.

9

84489862

CLAMP

for Creeper cable

1шт.

10

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

11

14305731

HEX SOC SCREW,M6 x 14mm, Cl 10.9, Full Thd

2шт.
