(31.114.AF[01]) - VAR - 743594 - PTO 540/1000 RPM, MECHANICAL, OUTPUT SHAFT, DUAL SPEED, W/O CAB - NA

Запчасти Case IH FARMALL 85C (31.114.AF[01]) - VAR - 743594 - PTO 540/1000 RPM, MECHANICAL, OUTPUT SHAFT, DUAL SPEED, W/O CAB - NA (31) - IMPLEMENT POWER TAKE OFF

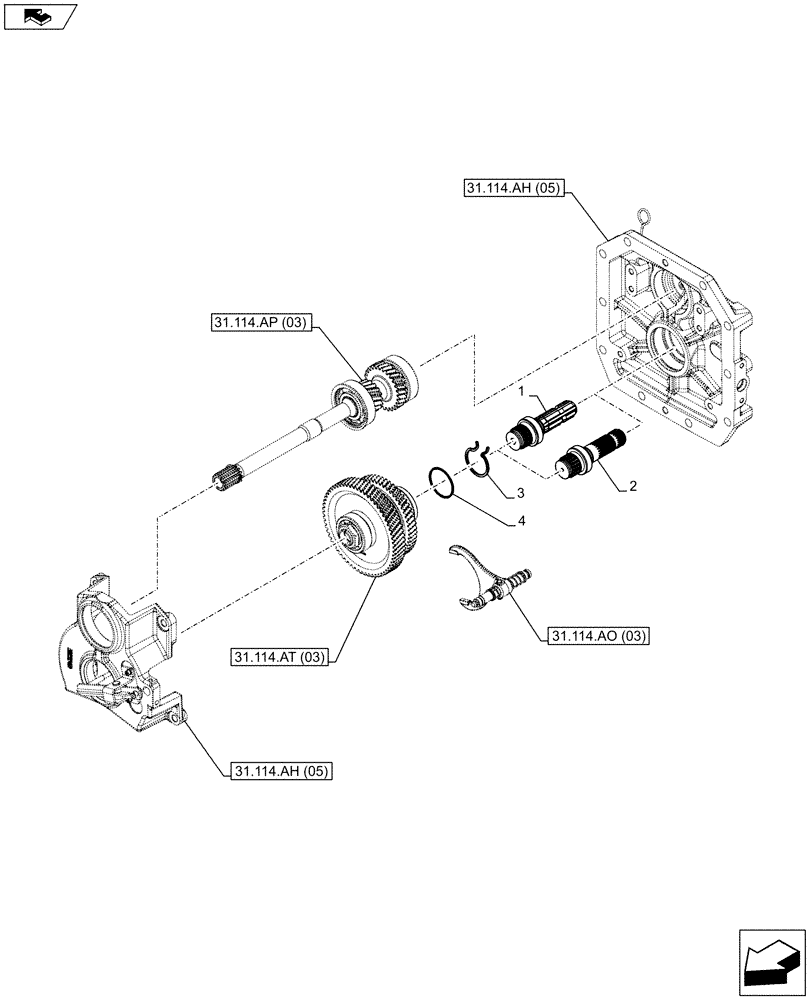

Схема запчастей Case IH FARMALL 85C - (31.114.AF[01]) - VAR - 743594 - PTO 540/1000 RPM, MECHANICAL, OUTPUT SHAFT, DUAL SPEED, W/O CAB - NA (31) - IMPLEMENT POWER TAKE OFF
(03)
14.ah (05)
1
1
1
home
14.a
31.
(03)
4
p
1
1
t
2
31.
14.ao (03)
31.
31.
1
3
31.
14.ah (05)
14.
a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133081

PTO SHAFT

Output, 540 RPM

1шт.

2

47133076

PTO SHAFT,162mm L

Output, 1000 RPM

1шт.

3

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

4

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

Выбрано товаров: 4
