Запчасти Case IH FARMALL 85C (25.108.AG[04]) - VAR - 338323 - 4WD FRONT AXLE, STEERING KNUCKLE, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (25) - FRONT AXLE SYSTEM

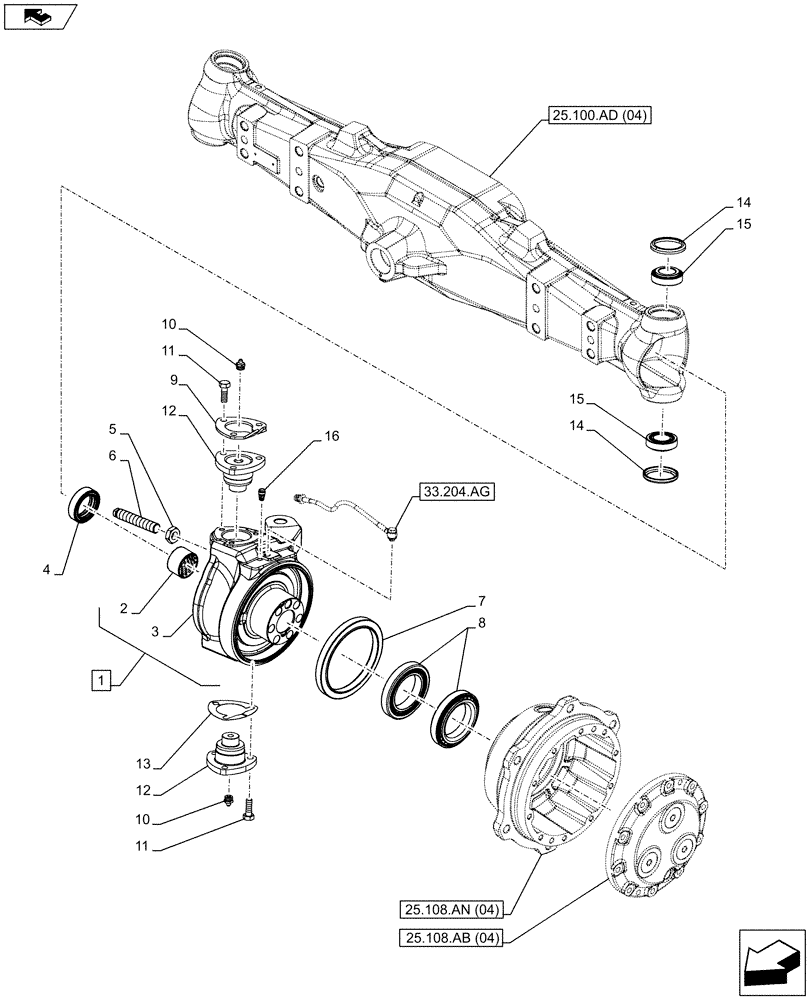

Схема запчастей Case IH FARMALL 85C - (25.108.AG[04]) - VAR - 338323 - 4WD FRONT AXLE, STEERING KNUCKLE, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (25) - FRONT AXLE SYSTEM
6
13
10
15
25.108.an (04)
25.100.ad (04)
14
4
1
10
7
12
9
1
33.204.ag
11
25.108.ab (04)
16
15
3
1
14
home
12
5
8
2

Артикул

Название

Примечание

Количество

1

84321705

STEERING KNUCKLE

RH, ASSY, Incl 2 - 3

1шт.

1

84321708

STEERING KNUCKLE

LH, ASSY, Incl 2 - 3

1шт.

2

84321698

BUSHING,45.1mm ID x 50.13mm OD x 25.25mm L

1шт.

3

NSS

NOT SOLD SEPARAT

Body knuckle, Incl in 1

1шт.

4

87521513

OIL SEAL

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

6

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

7

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

8

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

9

87640736

SPHERICAL BEARING,30mm ID x 55mm OD x 17mm W

4шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

11

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

5165271

BALL STUD,M14 x 1.5 x 46mm

4шт.

13

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

13

5100793

SHIM,.30mm Thk

1шт.

13

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

13

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

13

5100791

SHIM,.20mm Thk

1шт.

13

5100792

SHIM,.25mm Thk

1шт.

14

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

4шт.

15

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

16

13413290

BREATHER

2шт.

Выбрано товаров: 22
