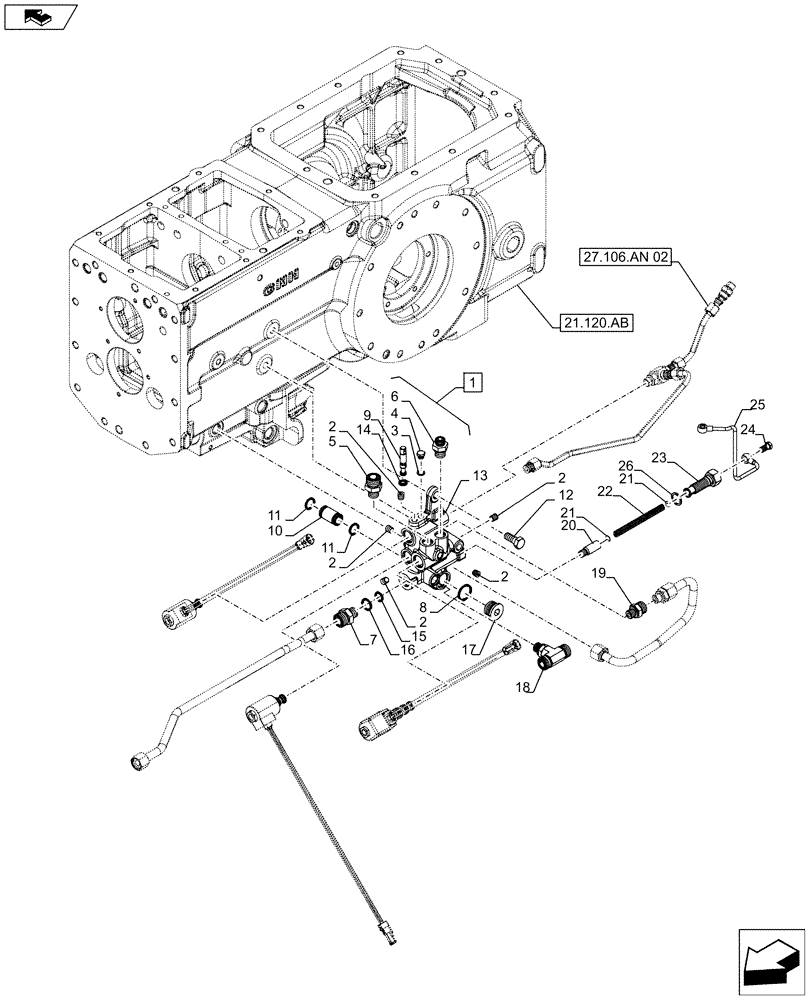

Запчасти Case IH FARMALL 85C (23.202.AJ[05]) - VAR - 743564 – DIFFERENTIAL LOCK, VALVE (23) - FOUR WHEEL DRIVE SYSTEM

1

5174902

SUPPORT

ASSY, Incl 2, 9, 13

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

7шт.

3

10298360

SEALING WASHER,M10.2 x 16 x 1, Copper

4шт.

4

11903814

BANJO BOLT,M10 x 1.25 x 19mm

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

6

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

7

47402055

HYD CONNECTOR

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

NSS

NOT SOLD SEPARAT

Pto Solenoid Exclusion, Incl in 1

1шт.

10

5174926

PIPE COUPLING

1шт.

11

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

14

5137965

SCRAPER RING

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

10119011

PLUG,M27 x 2 x 20, Cl5.8

1шт.

18

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

1шт.

19

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

20

5169220

HYDRAULIC VALVE

1шт.

21

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

22

5157119

SPRING,11.5mm x 127mm

1шт.

23

5196410

PLUG

1шт.

24

5169835

BANJO BOLT

1шт.

25

5169701

TUBE

1шт.

26

10257460

SEAL,M20.3 x 26 x 1.5

1шт.
