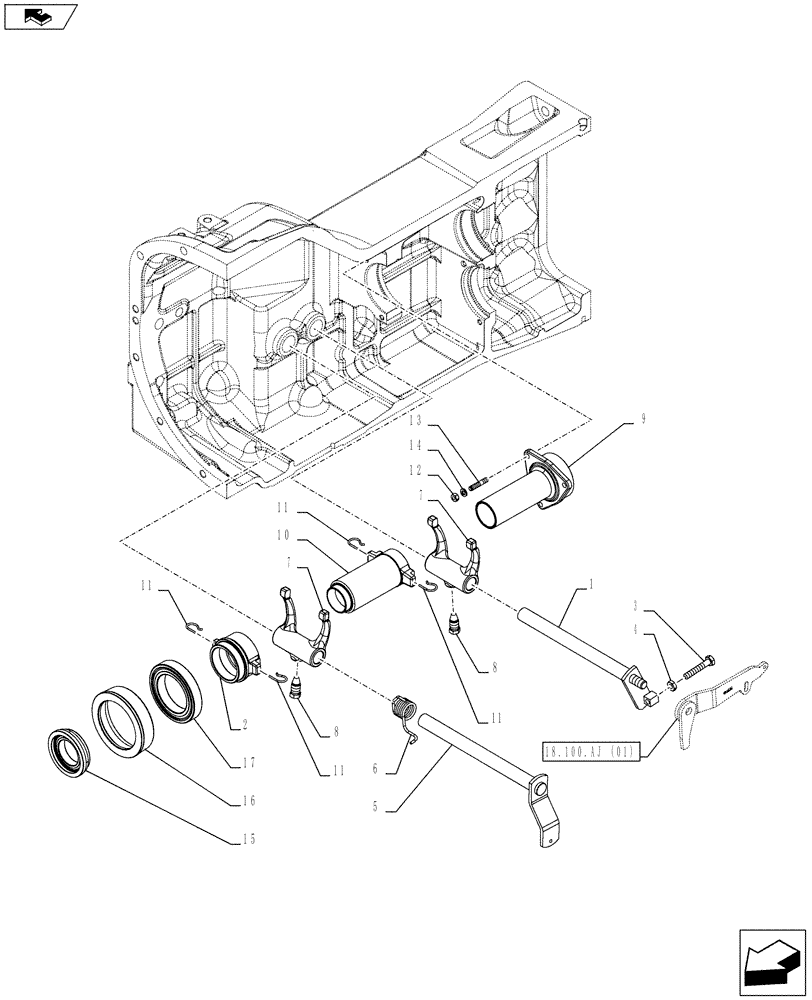

Запчасти Case IH FARMALL 85C (18.100.AF[01]) - VAR - 743565, 743519, 743566, 743594 - CLUTCH MECHANISM, FORKS, W/O CAB (18) - CLUTCH

1

84326194

CONTROL LEVER

ASSY, Incl 2 - 4

1шт.

2

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

Lever, Incl in 1

1шт.

3

15231624

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

4

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

5

47388485

CONTROL SHAFT

1шт.

6

47388507

TORSION SPRING

1шт.

7

5168938

FORK

2шт.

8

4968813

BOLT,Hex, M16 x 1.5 x 32mm

2шт.

9

5167184

COVER

1шт.

10

5167167

BEARING CARRIER,Clutch

1шт.

11

44011615

SPRING,15mm, Free Length

4шт.

12

16100814

NUT,M8, Cl 8, DAC

3шт.

13

13517210

STUD

3шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

15

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

16

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

17

5167173

BEARING CARRIER,Clutch

1шт.
