(90.124.AE[23]) - VAR - 332850 - DRIVER SEAT, W/ CAB - BEGIN YR 19-AUG-2013

Запчасти Case IH FARMALL 85C (90.124.AE[23]) - VAR - 332850 - DRIVER SEAT, W/ CAB - BEGIN YR 19-AUG-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

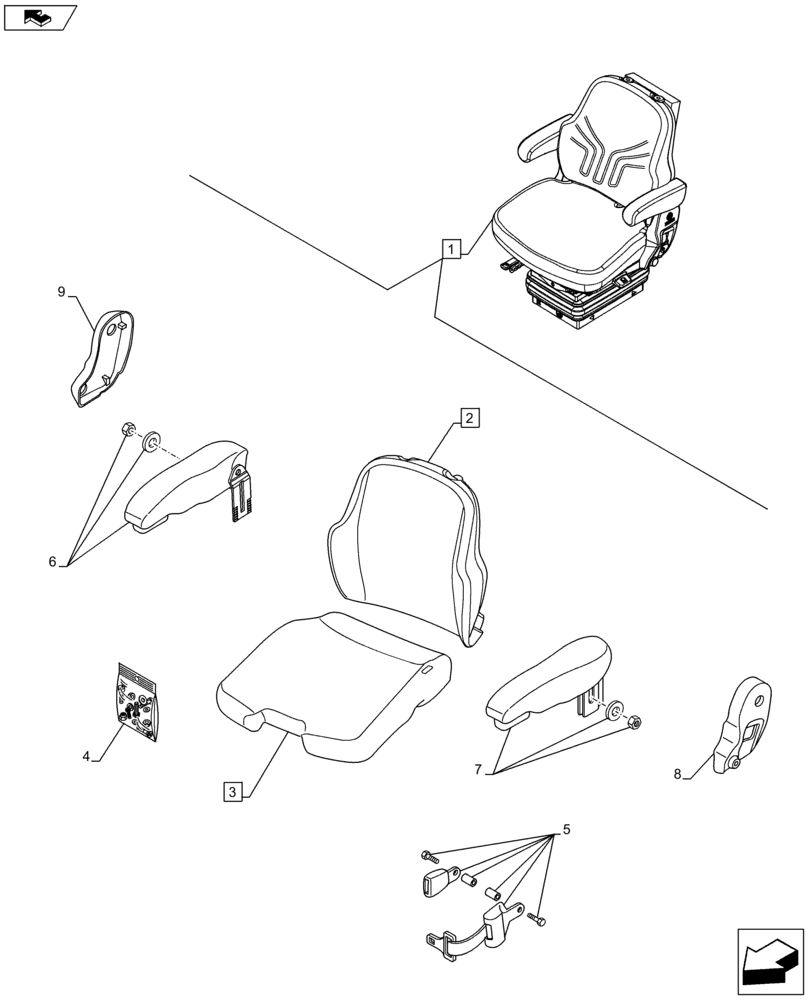

Схема запчастей Case IH FARMALL 85C - (90.124.AE[23]) - VAR - 332850 - DRIVER SEAT, W/ CAB - BEGIN YR 19-AUG-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
3
8
home
9
1
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

1шт.

2

84172430

SEAT BACK

ASSY, Incl 4

1шт.

3

84281117

SEAT CUSHION

ASSY, Incl 4

1шт.

4

84191200

SET OF PARTS

SMALL PARTS CUSHION

1шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

84487894

ARMREST

DX

1шт.

7

84486613

ARMREST

SX

1шт.

8

71491405

COVER

SX

1шт.

9

84171458

COVER

DX

1шт.
