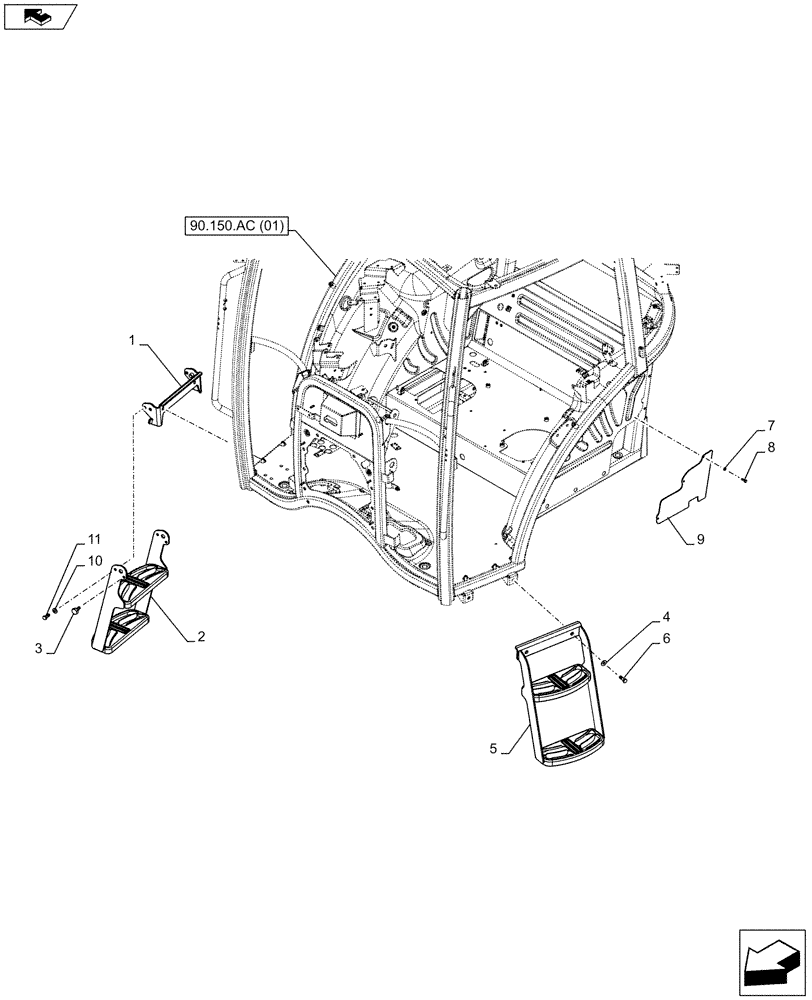

Запчасти Case IH FARMALL 85C (90.118.CE[04]) - VAR - 333460 - OPERATORS LADDER, NARROW, W/ CAB, ISO (MAS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84357506

BRACKET

1шт.

2

84421852

LADDER

1шт.

3

84492886

STEP BOLT,M10 x 27mm

1шт.

4

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

5

84580943

LADDER

1шт.

6

87026053

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

7

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6шт.

8

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

9

84477830

STEEL PLATE

2шт.

10

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
