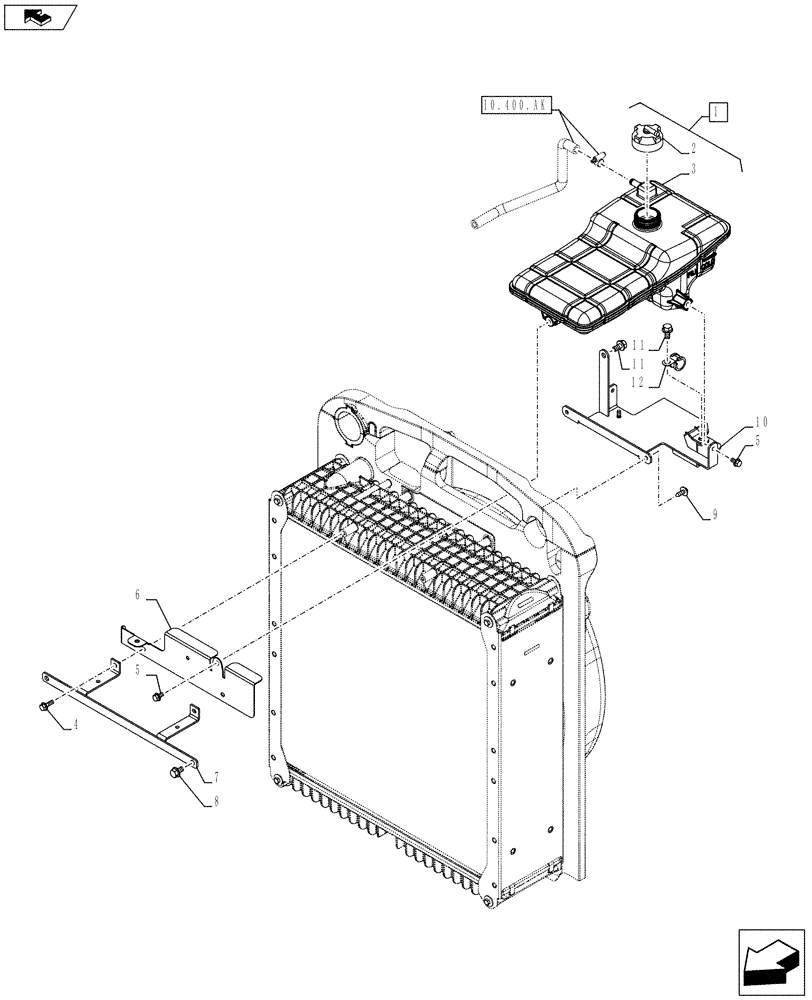

Запчасти Case IH FARMALL 85C (10.400.BH[01]) - VAR - 390200, 330200 - WATER TANK (10) - ENGINE

1

84479643

TANK

ASSY, Incl 2 - 3

1шт.

2

82022744

CAP,Female, Vented, Non-Locking

1шт.

3

NSS

NOT SOLD SEPARAT

Water tank; Incl in 1

1шт.

4

16286124

BOLT,M6 x 20mm, 8.8 DAC

M6 x 20 mm

2шт.

5

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

M6 x 12 mm

3шт.

6

84511833

BRACKET, SUPPORTING

1шт.

7

84526147

BRACKET

1шт.

8

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

M8 x 14 mm

2шт.

9

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

2шт.

10

84428244

BRACKET

1шт.

11

87342187

SCREW,Hex, M8 x 16mm

M8 x 16 mm

2шт.

12

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

1шт.
