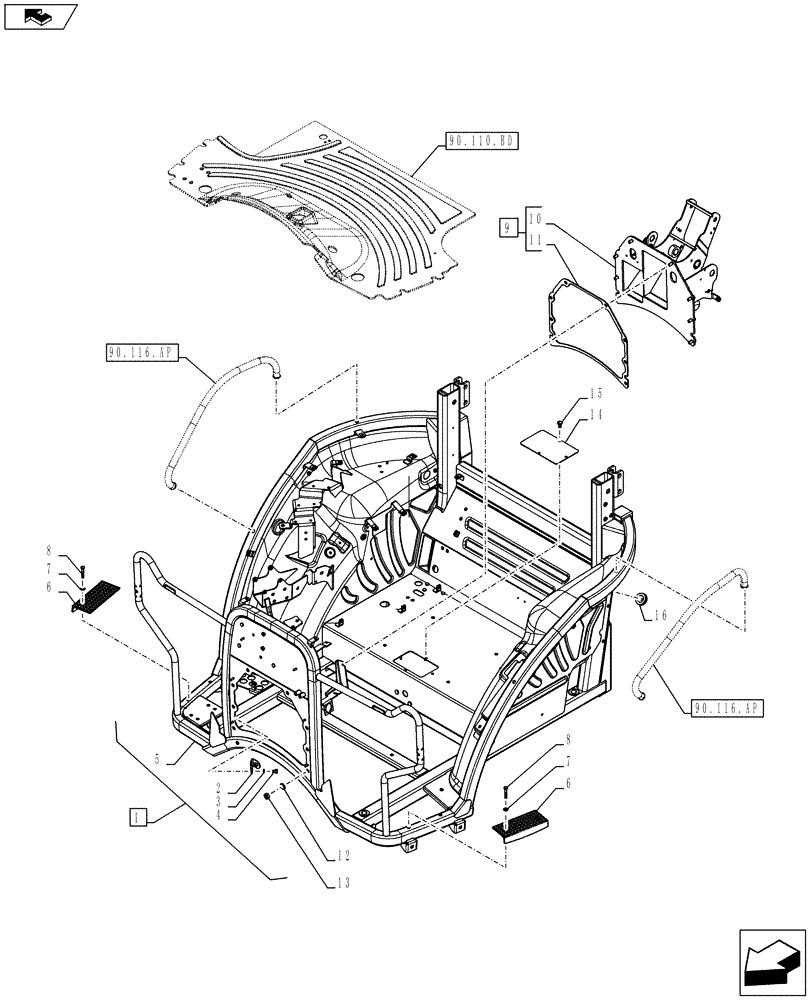

Запчасти Case IH FARMALL 85C (90.110.AP) - VAR - 394315, 392315, 334187, 334188, 334190, 334191 - PLATFORM - W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47397404

FLOOR

ASSY, Incl 2 - 5

1шт.

2

84601997

BRACKET

2шт.

3

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

5

NSS

NOT SOLD SEPARAT

Platform, Incl in 1

1шт.

6

84360804

RETAINER

2шт.

7

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

8

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

9

47360484

SUPPORT

ASSY, Incl 10, 11, Years: -11-MAY-14

1шт.

9

47580766

SPARK ARRESTER

ASSY, Incl 10, 11, Start Year: 12-MAY-14

1шт.

10

NSS

NOT SOLD SEPARAT

Spark Arrester, Incl in 9

1шт.

11

84265757

RUBBER SEAL,3mm Thk

1шт.

12

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

13

12164721

NUT,M10 x 1.25, Cl 10

8шт.

14

84403917

PLATE

1шт.

15

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

3шт.

16

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

1шт.
