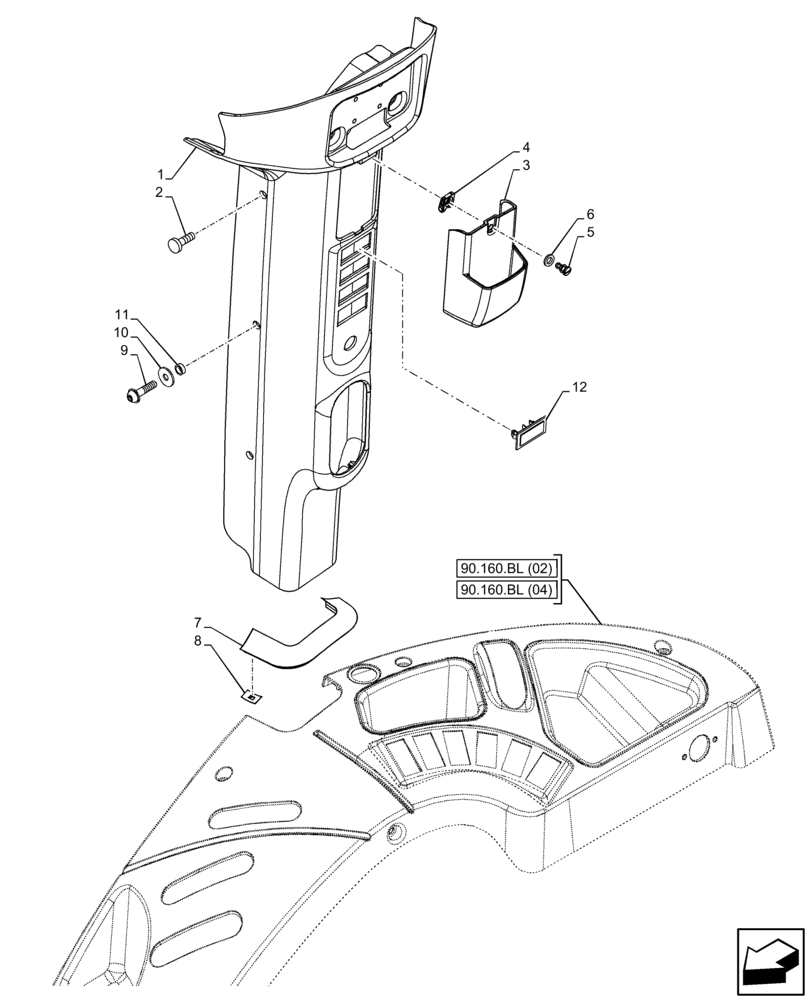

Запчасти Case IH FARMALL 85C (90.160.BI[04]) - VAR - 390124 - CAB, TRIM, PILLAR, RH, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84315058

TRIM

RH

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

5шт.

3

84315044

SUPPORT

1шт.

4

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

5

84354393

PIN,18.8mm L

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

7

84345365

RUBBER SEAL,121.9mm L

RH

1шт.

8

14183474

PUSH-ON NUT,M4, Push

5шт.

9

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

1шт.

10

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

11

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

12

5166218

PLUG,Switch

1шт.
