(90.120.BB[07]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), SUSPENSION, BELLOWS, W/O CAB

Запчасти Case IH FARMALL 85C (90.120.BB[07]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

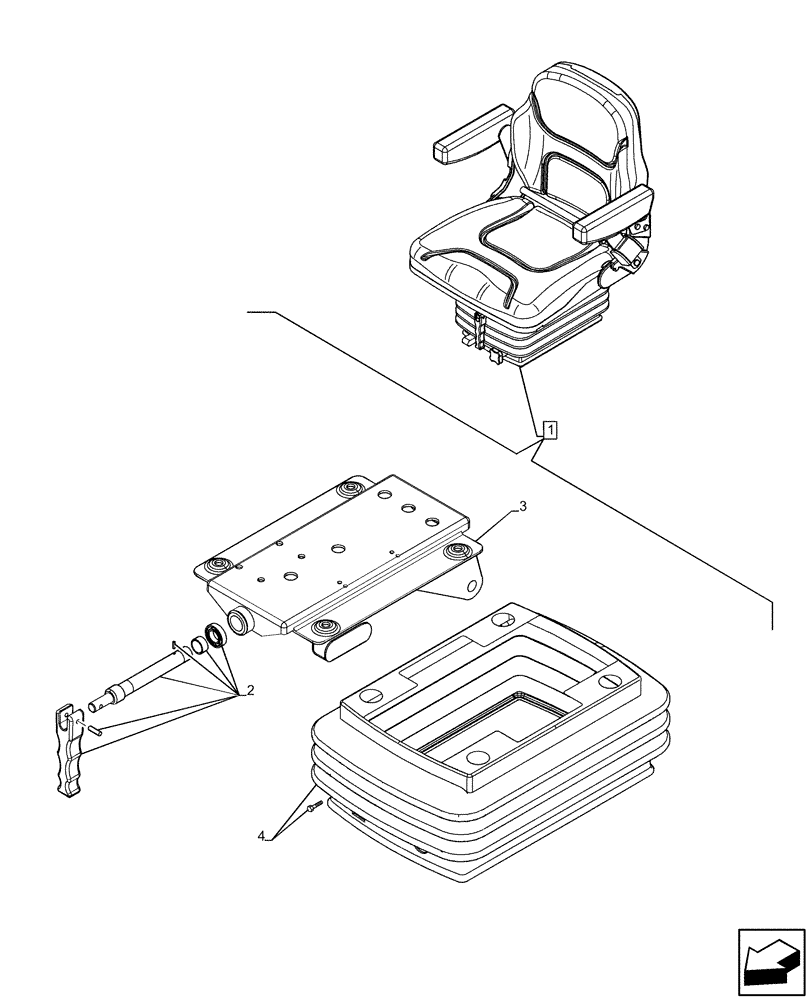

Схема запчастей Case IH FARMALL 85C - (90.120.BB[07]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
1
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84352965

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 4

1шт.

Mechanical Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

47388078

KIT

Weight Adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

47388492

KIT

Bellows

1шт.
