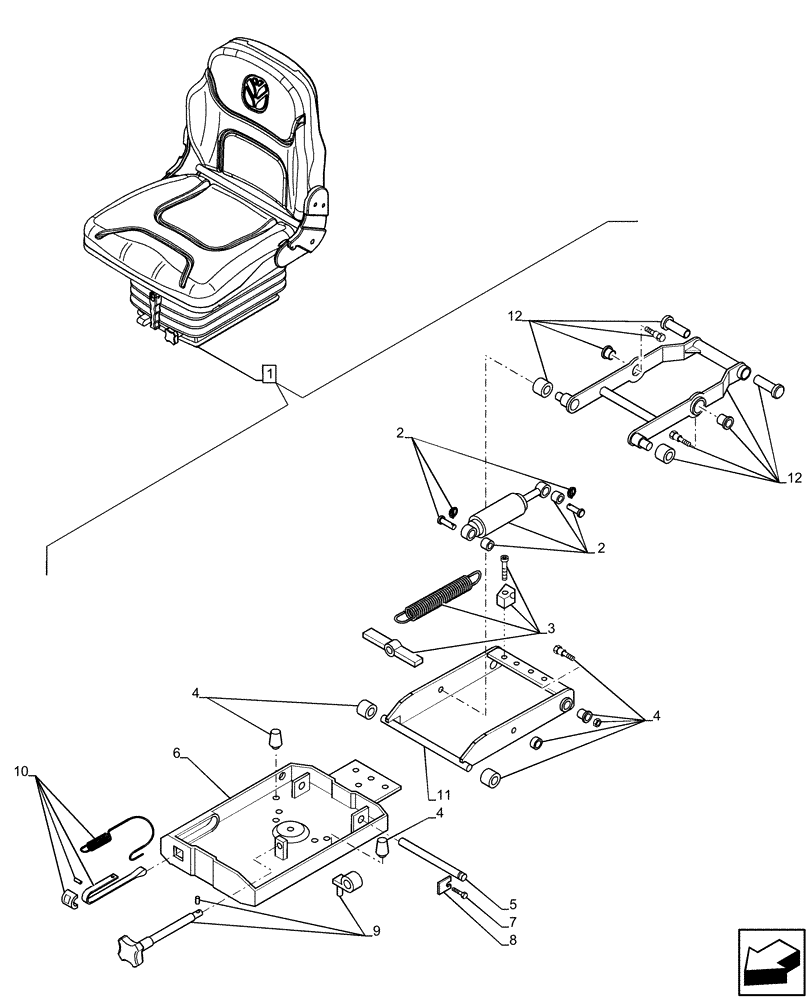

Запчасти Case IH FARMALL 85C (90.120.BB[06]) - VAR - 390901 - DRIVER SEAT, SUSPENSION, COMPONENTS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84352963

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 12

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

47388487

KIT

Shock Absorber

1шт.

3

47388076

KIT

Springs

1шт.

4

47388486

KIT

Rubbers Bump Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

9

47387994

KIT

Height Adjustment Lever

1шт.

10

47382403

KIT

Weight Indicator

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

12

47388497

KIT

Scissor Roller

1шт.
