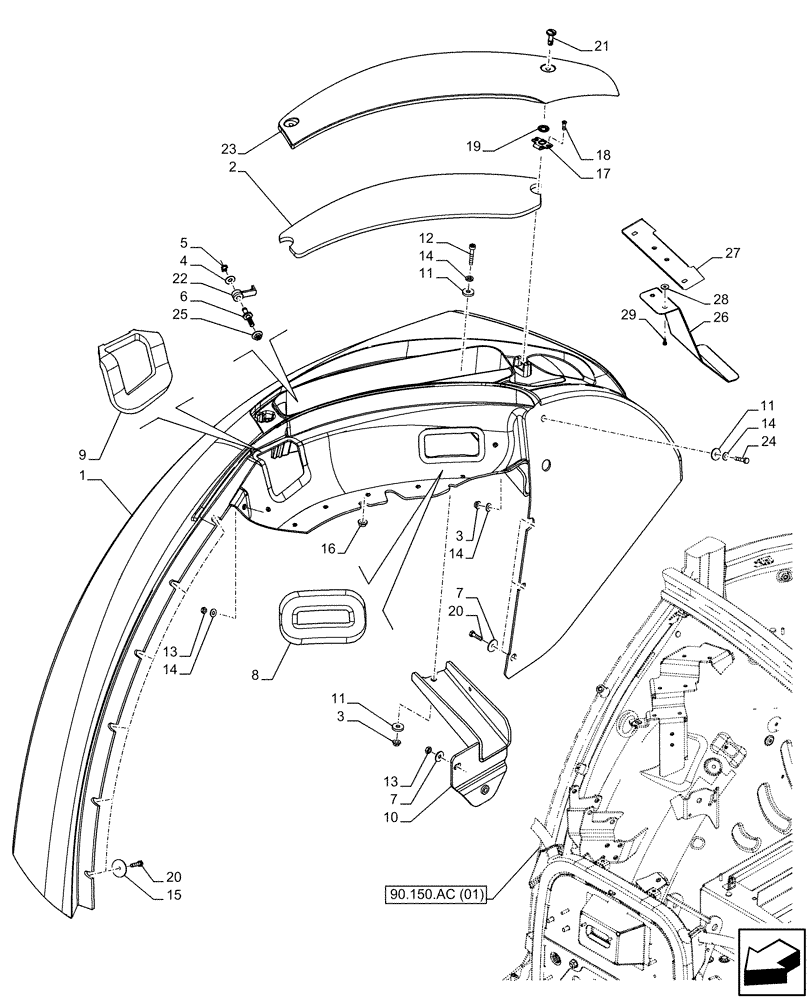

Запчасти Case IH FARMALL 85C (90.116.AC[12]) - VAR - 743599, 744599 - REAR FENDER, SPECIAL COLOR (BLACK), CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84593815

FENDER

LH, Black

1шт.

1

84593873

FENDER

RH, Black

1шт.

2

84221543

SEAL,468.5mm L

LH

1шт.

2

84346360

SEAL,468.5mm L

RH

1шт.

3

13046111

LOCK NUT,Flg Lock, M6

M6

2шт.

4

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

5

11065476

SNAP RING,M6, Ext

2шт.

6

84541332

PIN,6mm OD x 37mm L

M6

2шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

8

47701914

SEAL,166mm L

1шт.

9

84234567

SEAL,156mm L

1шт.

10

84315605

BRACKET

LH

1шт.

10

84315616

BRACKET

RH

1шт.

11

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

3шт.

12

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

13

15896214

NUT,M6, Cl 8

2шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

4шт.

15

47567924

WASHER,6.15mm ID x 34mm OD x 1.5mm Thk

6шт.

16

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

17

84351743

CLIP,9mm ID

9mm ID

2шт.

18

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

M3 x 12

4шт.

19

84290344

THRUST WASHER,13mm OD x 1mm Thk

2шт.

20

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

9шт.

21

84290347

LOCK PIN,6mm OD x 18mm L

2шт.

22

84341983

LOCK KEY

2шт.

23

84592941

TOP COVER

LH, Black

1шт.

23

84593315

TOP COVER

RH, Black

1шт.

24

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

25

13832101

NUT,Hex, M6 x 1.25

M6

2шт.

26

47465431

BRACKET

1шт.

27

47464573

BRACKET

1шт.

28

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

29

10902334

BOLT,Hex, M6 x 18mm, Cl 10.9, Full Thd

4шт.
