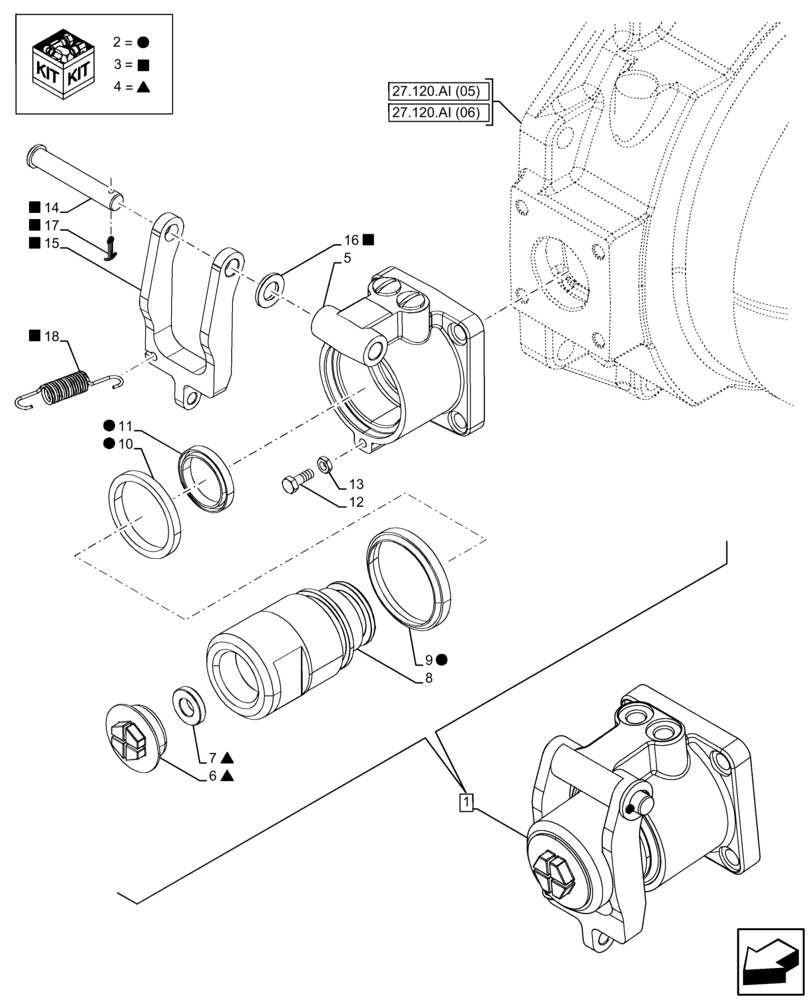

Запчасти Case IH FARMALL 85C (33.202.AJ[01]) - VAR - 334411 - BRAKE CYLINDER (33) - BRAKES & CONTROLS

1

84392195

HYDRAULIC CYLINDER,10mm Stroke

ASSY, Incl 2 - 18

1шт.

2

84392603

SEAL KIT

for Transm. Brake, Incl 9 - 11

1шт.

3

84392605

SERVICE KIT

Hand Lever for Transm. Brake, Incl 14 - 18

1шт.

4

84392604

SERVICE KIT

Washer & Plug for Transm. Brake, Incl 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Lock washer, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Yoke, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Cotter pin, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
