Запчасти Case IH FARMALL 85C (25.400.AQ) - VAR - 330581 - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM

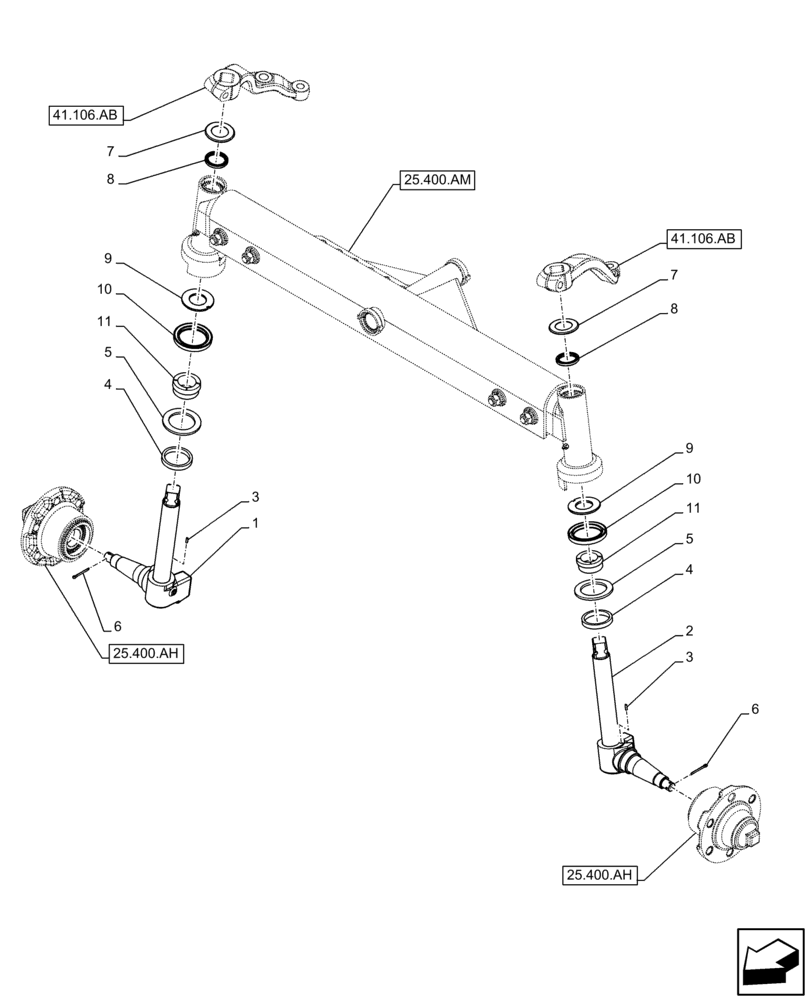

Схема запчастей Case IH FARMALL 85C - (25.400.AQ) - VAR - 330581 - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM
4
1
25.400.am
8
4
5
2
25.400.ah
8
41.106.ab
41.106.ab
7
3
7
11
9
3
10
11
6
6
10
25.400.ah
5
9

Артикул

Название

Примечание

Количество

1

87483070

SPINDLE

RH

1шт.

2

87483071

SPINDLE

LH

1шт.

3

82822563

PIN,4mm OD x 13mm L

2шт.

4

82833897

SEAL,57mm ID x 68mm OD x 9.8mm Thk

Dust Cover

2шт.

5

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Lower Dust Cover

2шт.

6

10733801

COTTER PIN,M4 x 36

2шт.

7

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

Upper Dust Cover

2шт.

8

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

2шт.

9

82833512

THRUST WASHER,38mm ID x 71.5mm OD x 4mm Thk

2шт.

10

82833546

SEAL,59.9mm ID x 86mm OD x 10mm Thk

60.2 x 86.0 x 10.5

2шт.

11

82824201

THRUST WASHER,38mm ID x 62mm OD x 27mm Thk

2шт.

Выбрано товаров: 11
