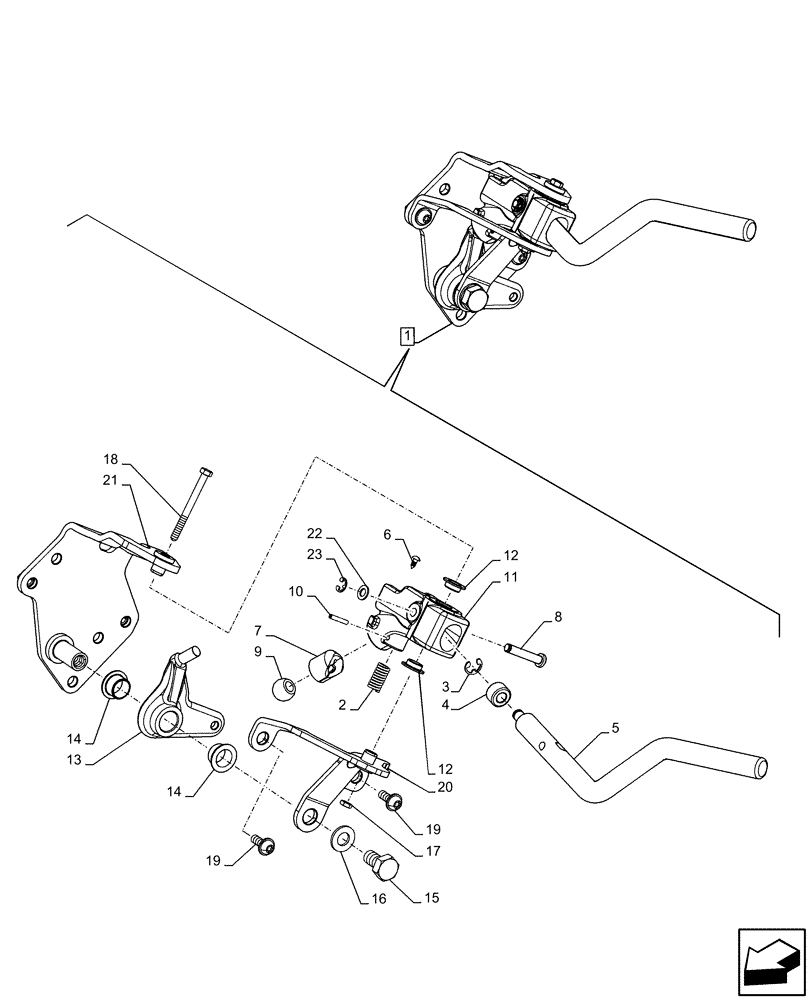

Запчасти Case IH FARMALL 85C (21.130.BC[04]) - VAR - 390067, 743546, 744576 - TRANSMISSION, CONTROL LEVER, COMPONENTS (12X12) (20X20 CREEPER) (24X24) (HYD PTO) (21) - TRANSMISSION

1

84401434

TRIP ARM

ASSY, Incl 2 - 23, Years: -09-FEB-14

1шт.

1

47635548

CONTROL

ASSY, Incl 2 - 23, Start Year: 10-FEB-14

1шт.

2

84318178

SPRING,10mm OD x 20mm L

1шт.

3

11087974

CIRCLIP,Ext., M8, DAC

1шт.

4

84399090

BUSHING,8mm ID x 16mm OD x 10mm L

1шт.

5

84401432

CONTROL LEVER

, Years: -09-FEB-14

1шт.

5

47635546

, Start Year: 10-FEB-14

1шт.

6

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

1шт.

7

84317604

BUSHING,19mm OD x 21.5mm L

1шт.

8

84411345

PIN,5mm x 36.25mm

1шт.

9

84317609

BALL,8mm ID x 17mm OD

1шт.

10

130075

LOCK PIN,M3 x 18, Slotted

1шт.

11

84295548

TRIP ARM

, Years: -09-FEB-14

1шт.

11

84294373

, Start Year: 10-FEB-14

1шт.

12

84345269

BUSHING,10mm ID x 12mm OD x 5mm L

2шт.

13

84281440

CONTROL LEVER

1шт.

14

84345358

BUSHING,14mm ID x 16mm OD x 10mm L

2шт.

15

14233221

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

17

12577817

NUT,Hex, M5 x 0.8

M5

1шт.

18

15201121

BOLT,Hex, M5 x 60mm, Cl 8.8

1шт.

19

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

20

84346648

BRACKET

1шт.

21

84295488

BRACKET

1шт.

22

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

1шт.

23

800-436

CIRCLIP,M6

1шт.
