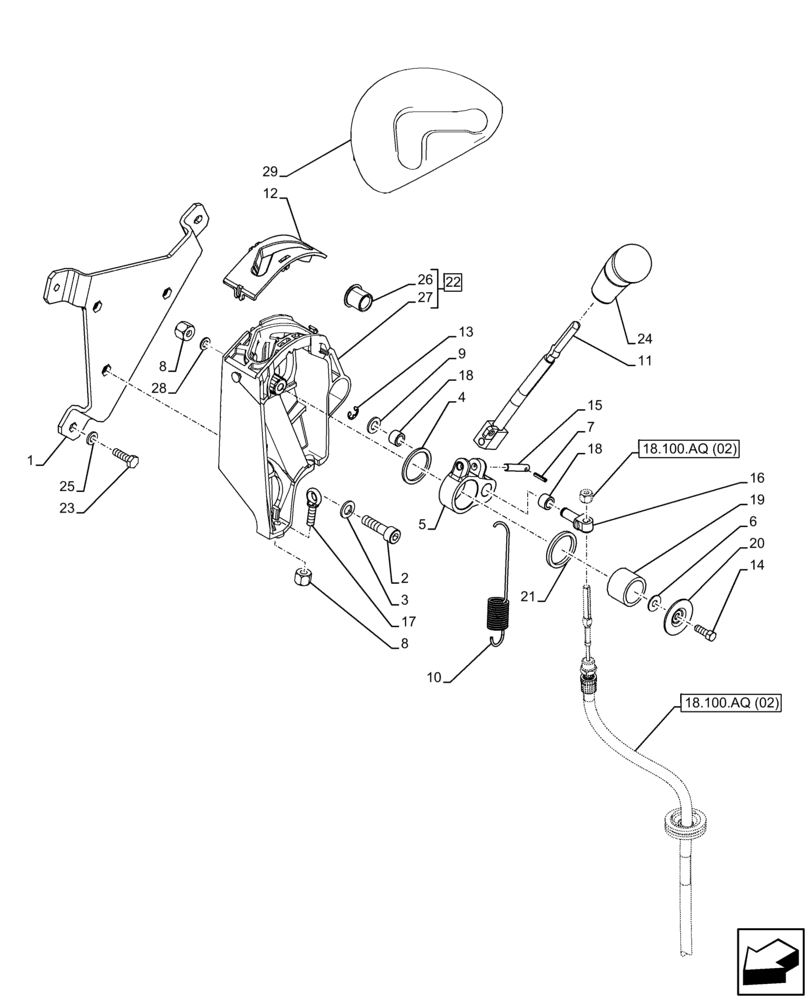

Запчасти Case IH FARMALL 85C (18.100.AN[02]) - VAR - 743519, 743565, 743566, 743594 - PTO CLUTCH, CONTROL LEVER, CAB (18) - CLUTCH

1

84300283

BRACKET

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

3шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

5

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

7

14159674

ROLL PIN,2.5mm OD x 14mm L

1шт.

8

12574221

NUT,M6 x 1, Cl 10

2шт.

9

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

10

84206711

SPRING,Extension, 18mm OD x 110mm L

1шт.

11

84284607

CONTROL LEVER

1шт.

12

87325900

SECTOR

1шт.

13

11087874

CIRCLIP,M6

1шт.

14

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

47131077

PIN,8mm

PTO Flexible Control

1шт.

17

5115351

HOOK,M6 x 1

1шт.

18

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

2шт.

19

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

20

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

21

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

22

47388442

SUPPORT

ASSY, Incl 26, 27

1шт.

23

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

24

5194972

KNOB

Yellow

1шт.

25

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

26

87325901

BUSHING,15.8mm ID x 22mm OD x 21mm L

1шт.

27

NSS

NOT SOLD SEPARAT

Support, Incl in 22

1шт.

28

11194479

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD

1шт.

29

84397042

PLASTIC PLUG

1шт.
