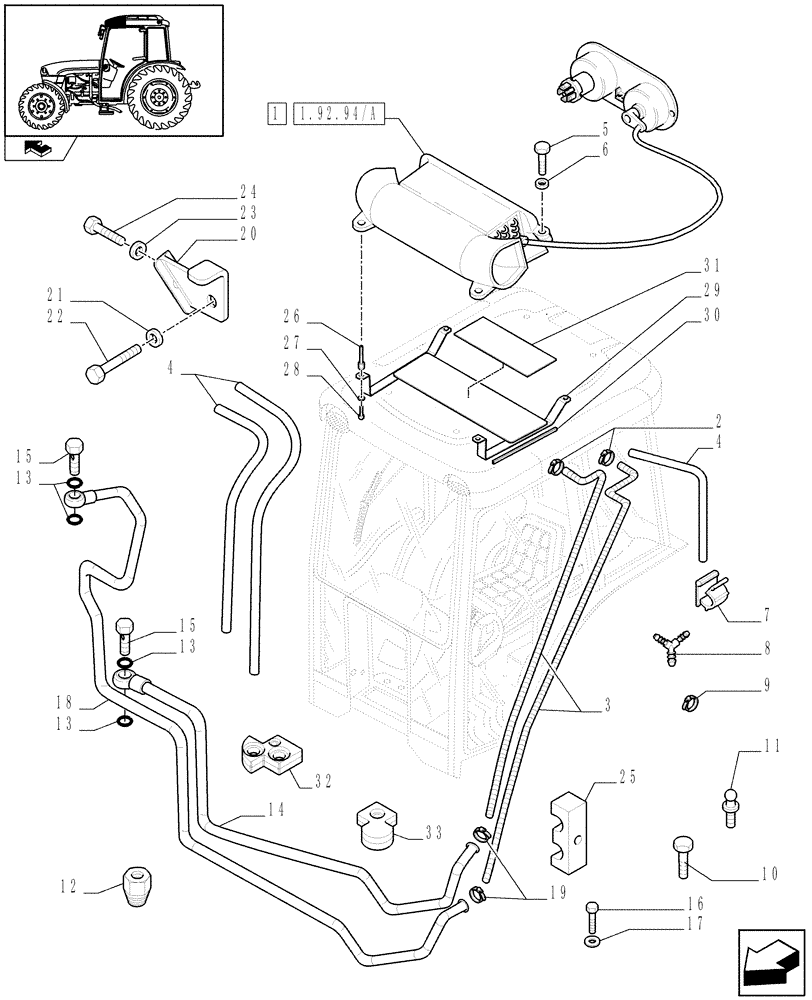

Запчасти Case IH FARMALL 85C (1.92.94[03]) - CAB - HEATING SYSTEM (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

ASSY

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

2шт.

3

87484979

HEATER HOSE,13.97 mm ID x 3600.00 mm

Delivery

1шт.

3

87484980

HEATER HOSE,13.97 mm ID x 3600.00 mm

Return

1шт.

4

82849357

HOSE,10mm ID x 5000mm L

5000MM

1шт.

5

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

6

13578311

WASHER

D=8

2шт.

7

5182865

CLIP

1шт.

8

5186511

HYD CONNECTOR

Drain

1шт.

9

13423577

HOSE CLAMP,16.5mm - 18.3mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

1шт.

10

13278214

SCREW,M6 x 18mm

M6x18

10шт.

10

18770114

SCREW

M6x16

4шт.

11

15152011

BALL STUD

BALL PIN

10шт.

12

87311071

ADAPTER

1/2"-14NPTF, M18x1.5

1шт.

13

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

14

87577561

TUBE,16 mm OD x 553, 237 mm L

Cold, Serial Range: -C6441

1шт.

14

84224293

RIGID TUBE

Cold, Start Serial: D6441

1шт.

15

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18x1.5x34

2шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

16

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

17

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

18

87577562

RIGID TUBE,16 mm OD

Hot, Serial Range: -C6441

1шт.

18

84224292

RIGID TUBE

Hot, Start Serial: D6441

1шт.

19

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

20

87573622

RETAINER COLLAR

1шт.

21

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

22

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

23

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

24

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

25

87571442

BRACKET

2шт.

26

84287796

SPACER

, Start Serial: D6507

4шт.

27

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

, Start Serial: D6507

4шт.

28

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

, Start Serial: D6507

4шт.

29

84287795

GUARD

, Start Serial: D6507

1шт.

30

5150787

, Start Serial: D6507

2шт.

31

84291139

RUBBER SEAL

, Start Serial: D6507

1шт.

32

84278954

COVER

RH, Start Serial: D6626

1шт.

33

84278956

COVER

LH, Start Serial: D6626

1шт.
