(1.92.93/01) - TWO TELESCOPIC REAR VIEW MIRRORS (VAR.330879)

Запчасти Case IH FARMALL 85C (1.92.93/01) - TWO TELESCOPIC REAR VIEW MIRRORS (VAR.330879) (10) - OPERATORS PLATFORM/CAB

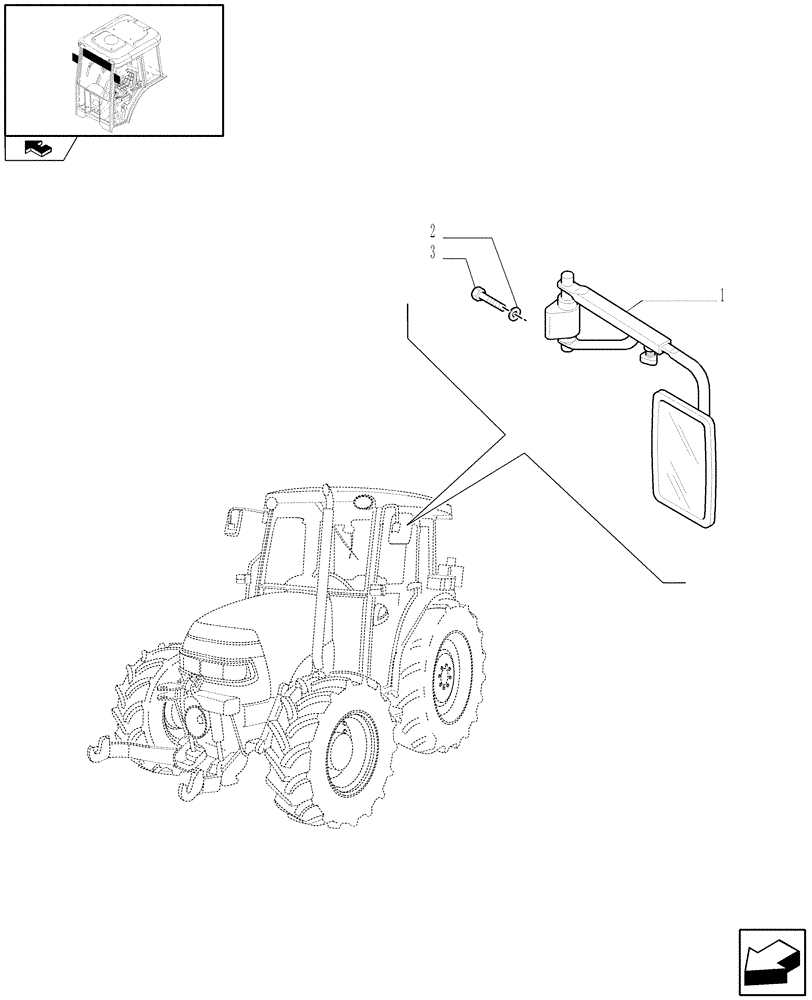

Схема запчастей Case IH FARMALL 85C - (1.92.93/01) - TWO TELESCOPIC REAR VIEW MIRRORS (VAR.330879) (10) - OPERATORS PLATFORM/CAB
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128383

REAR VIEW MIRROR

ASSY, LH

1шт.

1

47128380

REAR VIEW MIRROR

ASSY, RH

1шт.

2

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

8x13

4шт.

3

5182263

HEX SOC SCREW,M8 x 18mm

M18x18

4шт.

Выбрано товаров: 4
