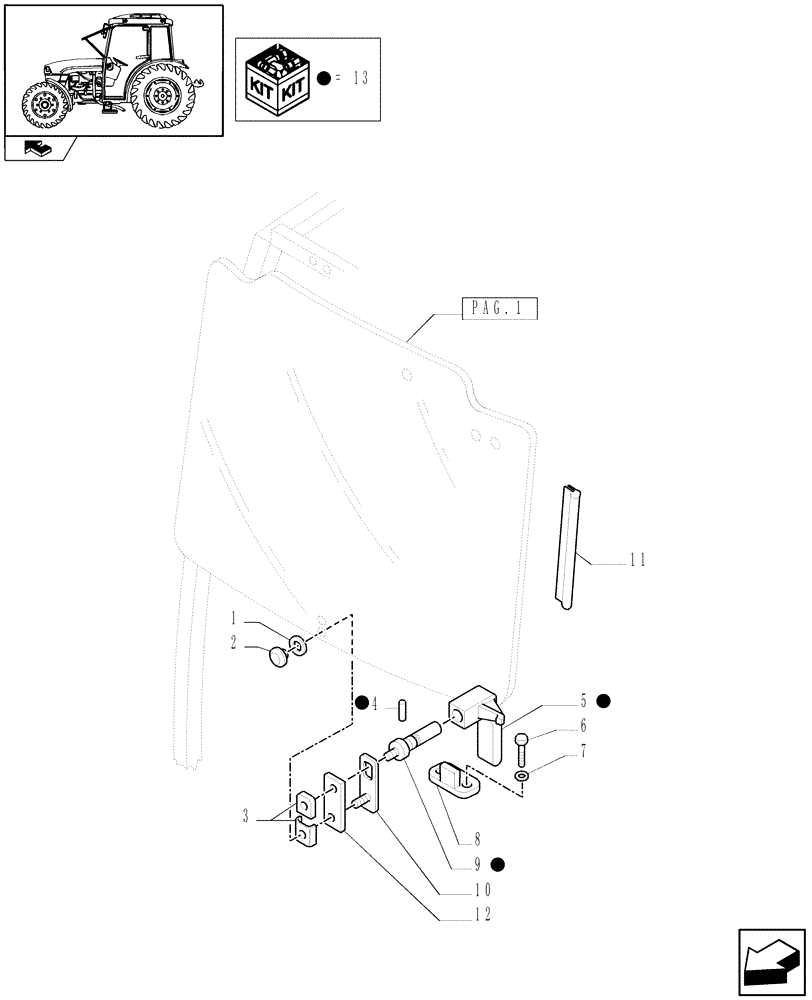

Запчасти Case IH FARMALL 85C (1.92.92/01[02]) - CAB - HINGED WINDSHIELD, HANDLE AND RELEVANT PARTS (VAR.330660) (10) - OPERATORS PLATFORM/CAB

1

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

1шт.

2

5120540

KNOB

2шт.

3

5113395

SEAL, GLASS,Window, 30mm L

4шт.

4

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

5

87656446

HANDLE

1шт.

6

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8x35

4шт.

7

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

4шт.

8

87656439

STRIKER PLATE

2шт.

9

5183752

PIN,26mm OD x 64.5mm L

Incl. 4, 5

1шт.

10

5186866

PLATE

1шт.

11

5167998

SEAL

500MM

1шт.

12

44911521

COVER PLATE

2шт.

13

87658582

HANDLE

ASSY

1шт.
