(1.92.88/03) - PASSENGER SEAT FOR ELECTRONIC FRONT HPL - COVERINGS (VAR.331865)

Запчасти Case IH FARMALL 85C (1.92.88/03) - PASSENGER SEAT FOR ELECTRONIC FRONT HPL - COVERINGS (VAR.331865) (10) - OPERATORS PLATFORM/CAB

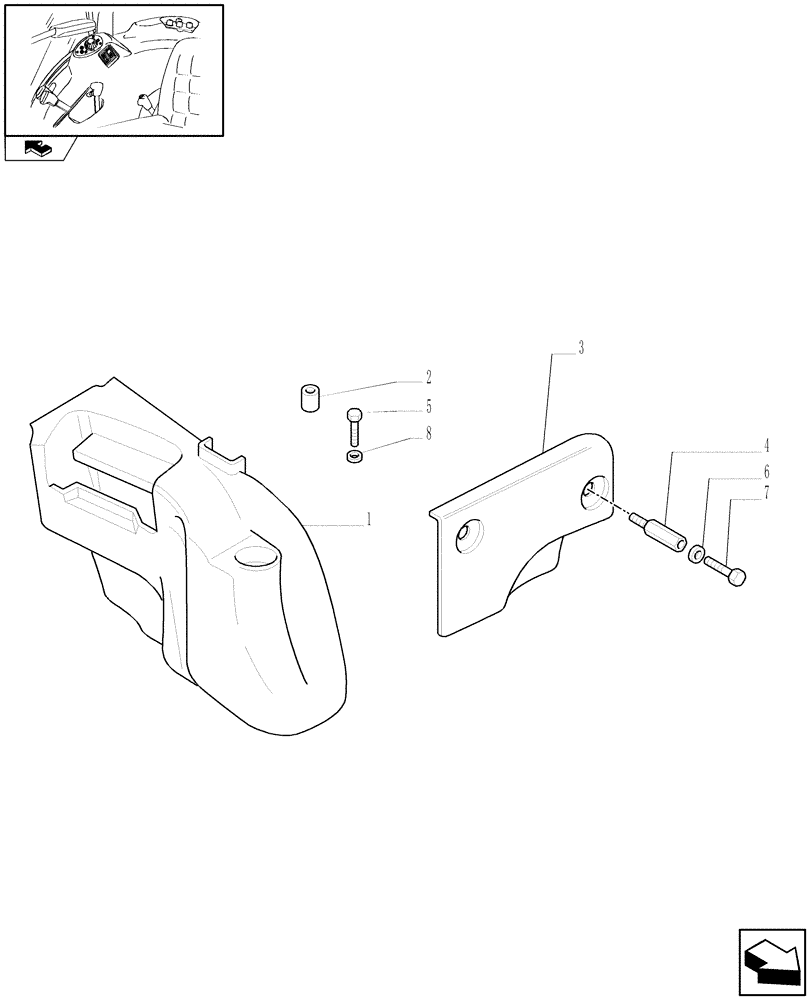

Схема запчастей Case IH FARMALL 85C - (1.92.88/03) - PASSENGER SEAT FOR ELECTRONIC FRONT HPL - COVERINGS (VAR.331865) (10) - OPERATORS PLATFORM/CAB
1
4
8
7
6
home
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87623616

COVER

1шт.

2

87726554

SPACER

4шт.

3

47128695

COVER

1шт.

4

47128696

SPACER

1шт.

5

86507088

SCREW,Phillips Drive, Pan HD, M8 x 30mm, Cl 4.8

4шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

7

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

8

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.
