(1.92.85/08A) - FABRIC SEAT WITH AIR SUSPENSION, RETRACTABLE BELTS AND SAFETY SWITCH - BREAKDOWN - W/CAB - C6330

Запчасти Case IH FARMALL 85C (1.92.85/08A) - FABRIC SEAT WITH AIR SUSPENSION, RETRACTABLE BELTS AND SAFETY SWITCH - BREAKDOWN - W/CAB - C6330 (10) - OPERATORS PLATFORM/CAB

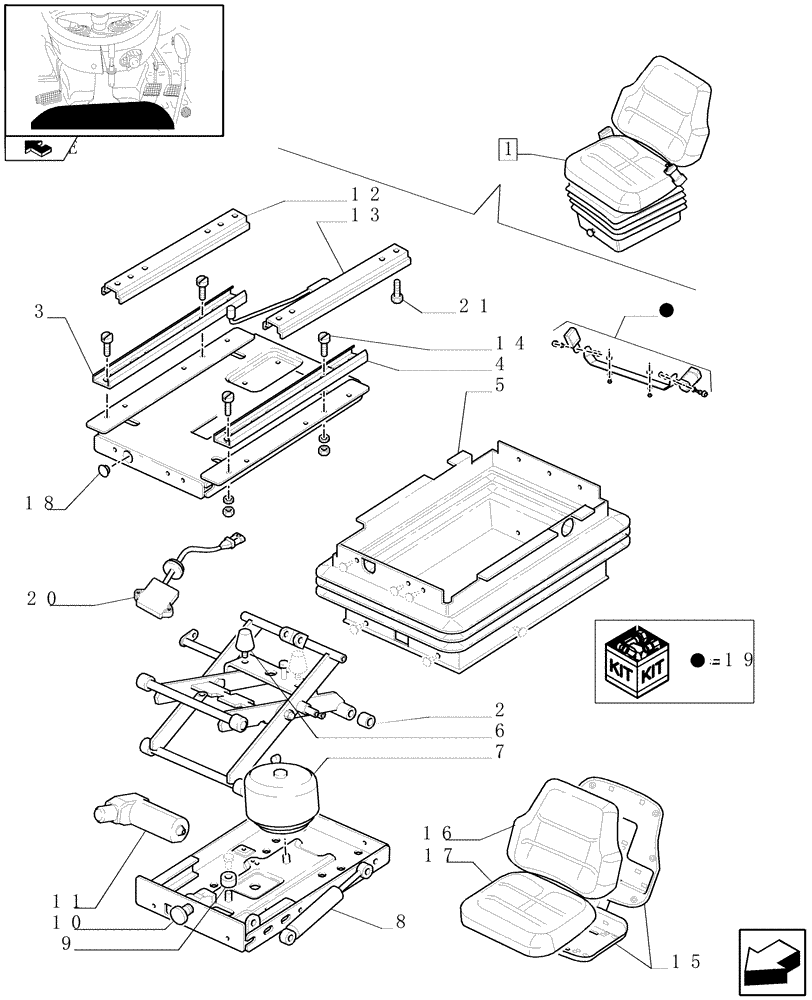

Схема запчастей Case IH FARMALL 85C - (1.92.85/08A) - FABRIC SEAT WITH AIR SUSPENSION, RETRACTABLE BELTS AND SAFETY SWITCH - BREAKDOWN - W/CAB - C6330 (10) - OPERATORS PLATFORM/CAB
11
14
20
9
2
8
6
1
3
16
18
19
19
17
15
7
12
4
13
home
5
19
21
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87596481

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

Fabric Case

1шт.

1

87730601

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

2

47127024

BUSHING

4шт.

3

5197885

GUIDE

RH

1шт.

4

5197884

GUIDE

LH

1шт.

5

5197883

BELLOWS

1шт.

6

5197882

RUBBER PAD

2шт.

7

5197881

SPRING

1шт.

8

5197878

SHOCK ABSORBER

1шт.

9

5197877

SPEED GOVERNOR

2шт.

10

5197880

PUSH BUTTON

1шт.

11

47127025

AIR COMPRESSOR

1шт.

12

47127060

GUIDE

1шт.

13

47127061

GUIDE

1шт.

14

5197858

SCREW,M8 x 20mm, Cl 8.8

4шт.

15

47127057

PLATE

1шт.

16

47131868

SEAT BACK

, Serial Range: -C5798

1шт.

16

NSS

NOT SOLD SEPARAT

, Start Serial: D5798

1шт.

17

87596554

SEAT CUSHION

, Serial Range: -C5798

1шт.

17

NSS

NOT SOLD SEPARAT

, Start Serial: D5798

1шт.

18

47136906

PLUG

1шт.

19

47135573

KIT

1шт.

20

87552428

SWITCH

1шт.

21

84263436

SCREW

1шт.
